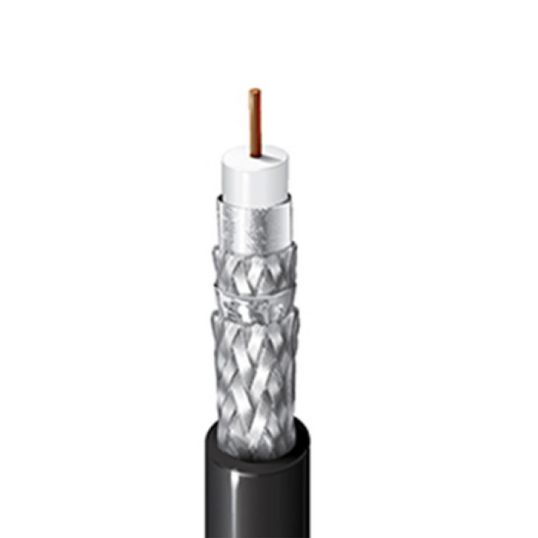

Belden RG6 Coaxial Cable Quad Shield 18AWG PE Tri-Laminate/PVC Black 305M

$Belden\Belden_3092A.jpg$

Description

RG6 Coaxial Cable Quad Shield, 300 Volt, 18 AWG, Bare Copper Covered Steel, 0.040 in Conductor Diameter, Bend Radius: 3 in, Pulling Tension: 118 lb, Stranding: Solid, Conductor Resistance: 28 Ohm/1000 ft at 20 deg C, Capacitance: Conductor to Shield: 16.2 pF/ft, 75 Ohm Impedance, Aluminium 60/40% Coverage Braid, Foam Polyethylene Insulation, PVC Sheath, Tri-Laminate (Alum+Poly+Alum) 100% Coverage Screen, Black Sheath, 0.298 in Overall Diameter, 305 mtr Length,-30 to 75 deg C

Key Specifications

Barcode (EAN-13)	9318674023692
SKU	BEL3092A0101000
Brand	Belden
Product Type	Quad Shield Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	3092A 0101000
Bend Radius	3 inch
Braid Material	Aluminium 60/40% Coverage
Conductor Resistance	28 Ohm/1000 ft at 20 deg C
Conductor Size	18 AWG
Capacitance	Conductor to Shield: 16.2 pF/ft
Conductor Diameter	0.040 inch
Conductor Type	Copper Covered Steel
Insulation Material	Foam Polyethylene
Overall Diameter	0.298 inch
Pulling Tension	118 lb
Screen Material	Tri-Laminate (Alum+Poly+Alum) 100% Coverage
Sheath Colour	Black
Sheath Material	PVC
Temperature	-30 to 75 deg C
Stranding	Solid
