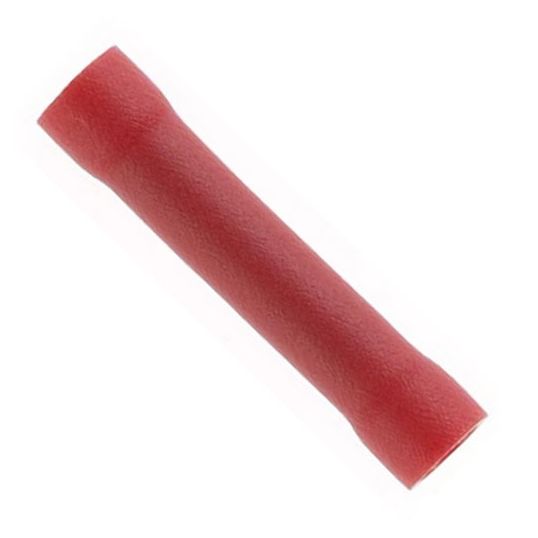

Cabac In-Line Splice Insulated Double Grip 0.5-1.6mm 1C Red 50 Pack

$Cabac\Cabac_ILS1_25DG.jpg$

Description

In-Line Splice Insulated Double Grip, 0.5-1.6 mm, 1 Conductors, 300 Volt, 24 Amp, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Funnel Entry Terminal, Annealed Copper, PVC Insulation, Red Insulation, Tin Electroplated, -40 to 105 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9318674521785
SKU	CAAILS1.25DG
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Splice & Bullet Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique funnel entry that speeds wire termination - increasing reliability High quality product - meets international standards Long term electrical integrity Full technical back up including QA
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	ILS1.25DG
Conductive Material	Annealed Copper
Conductivity	99.5% IACS
Conductor Size	0.5-1.6mm
Current Rating	24 Amp
Ductile Rating	35%
Finish	Tin Electroplated
Insulation Material	PVC
Min. Breakdown Voltage	1.5 kV
Insulation Colour	Red
Number of Conductors	1
Pack Size	50 Pack
Resistivity	1.738 micro-Ohm/cm
Temperature	-40 to 105 deg C
Terminal Type	Funnel Entry
Tensile Strength	200 MPa
Voltage Rating	300 Volt
