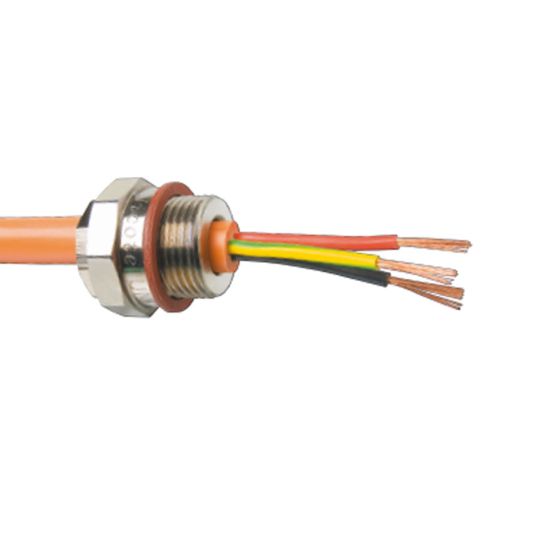

ABB NICOTE General Purpose Cable Gland 15-20mm M25x1.5 Nickel Plated Brass

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland Metal Unarmoured General Purpose, M25 x 1.5 mm, 10 mm Thread Length, 15 mm Min. Sheath OD, 20 mm Max. Sheath OD, For Use With Circular Cable, 33 mm Width Across Corners, 17 mm Protrusion Length, Brass Body, Nickel Plated

Key Specifications

chevron-down
Barcode (EAN-13)
9318674369868
SKU
CAAUN25A
Brand
ABB

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • General purpose cable gland for circular cable
  • Provides seal on cable sheath
  • Indoor and outdoor use
  • Nickel plated brass components
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product UN25A
For Use With Circular Cable
Thread Size M25 x 1.5 mm
Body Material Brass
Finish Nickel Plated
Thread Length 10 mm
Width Across Corners 33 mm
Protrusion Length 17 mm
Max. Sheath OD 20 mm
Min. Sheath OD 15 mm
