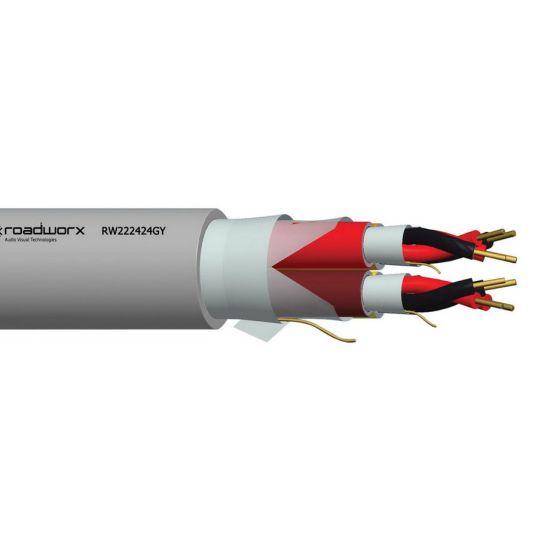

Madison Roadworx Analogue Audio Snake 24Pair 24AWG 7/0.20mm PVC Grey 300M

$Madison_Technologies\Madison_RW222424-GY.jpg$

Description

Analogue Audio Snake Multi Pair, 24 AWG, Tinned Copper, Bend Radius: Install: 201mm, 24 Core, Elongation: Sheath: >100%, Inner Sheath: >=300%, 24 Pair, Pulling Tension: 738 N, Tensile Strength: Sheath: >=12 N/mm; Inner: >=13.6 N/mm, Stranding: 7/0.20 +/-0.006mm, Insulation Thickness: >=0.25mm, Sheath Thickness: Inner: >=0.3mm, Outer: >=1.5mm, Conductor Resistance: DC: 93.25 Ohm/km at 20 deg C, Polyethylene Insulation, PVC Sheath, Aluminium Foil 100% Coverage Screen, Red/Black Insulation, Grey Sheath, 20.1 +/-0.2mm Overall Diameter, 300 mtr Length,-15 to 70 deg C

Key Specifications

SKU	MADRW222424GY300
Brand	Madison
Range Name	Roadworx
Product Type	Audio Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	300
UNSPSC Class	43221700
UOM	MTR
Vendor Product	RW222424GY300
Conductor Size	24 AWG
Conductor Type	Tinned Annealed Copper
Sheath Colour	Grey
Overall Diameter	20.1 +/-0.2 mm
Temperature	-15 to 70 deg C
Screen Material	Aluminium Foil
Bend Radius	Install: 201 mm
Conductor Resistance	DC: 93.25 Ohm/km at 20 deg C
Elongation	Sheath: >100%/Inner Sheath: >=300%
Insulation Colour	Black/Red
Insulation Material	Polyethylene
Insulation Thickness	>=0.25 mm
Number of Cores	24 Core
Pulling Tension	738 N
Sheath Material	PVC
Sheath Thickness	Inner: >=0.3 mm/Outer: >=1.5 mm
Stranding	7/0.20 +/-0.006 mm
Tensile Strength	Sheath: >=12 N/sq-mm; Inner: >=13.6 N/sq-mm
Pair Count	24 Pair
