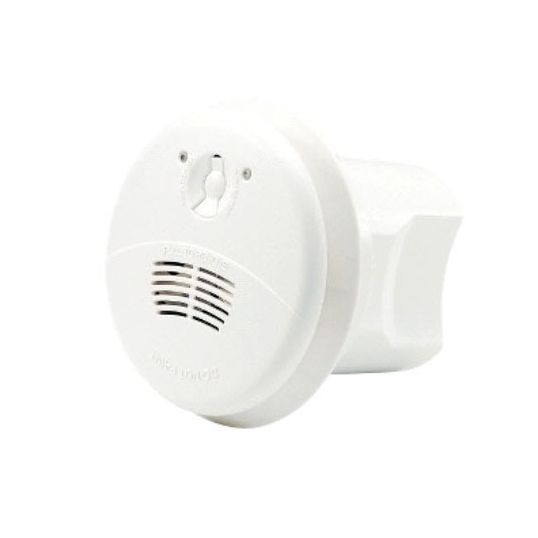

Clipsal Smoke Alarm Photoelectric Type 220-240 VAC 9 VDC 6LR61 Alkaline Battery Gen 4 Ceiling Flush Polycarbonate

Description

755PFM4 is a photoelectric flush mount smoke alarm that can be used as a single mains powered battery backed alarm or can be interconnected with other 755 series smoke alarms. The stylish design is extremely low profile and unobtrusive. It caters for fast installs with 90mm cut out & extra large terminals.

Key Specifications

Barcode (EAN-13)	9311554793661
SKU	CLI755PFM4
Brand	Clipsal
Product Type	Smoke Alarms

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Photoelectric detection technology for early detection and warning from hazardous smoke and fire Includes surface-mount, low-profile and flush-mounted options Optional mounting bases for wireless interconnect or control of third party devices, with remote test/hush input option
Standard Pack Size	5
UNSPSC Class	46191500
UOM	EA
Vendor Product	755PFM4
Battery Type	Alkaline Batteries
Control Type	Button (Test/Hush)
Coverage	Up to 40 Devices
Dimensions	108 mm Diameter x 102.6 mm Depth
Current	13-40 mA
Material	Polycarbonate
Frequency	50 Hz
Humidity	0-95% RH
Mounting Method	Ceiling Flush
Sensor Type	Photoelectric
Sound Level	85 dBA at 3 mtr
Temperature	0 to 45 deg C
Terminal Type	Screw
Voltage	220-240 Volt AC
