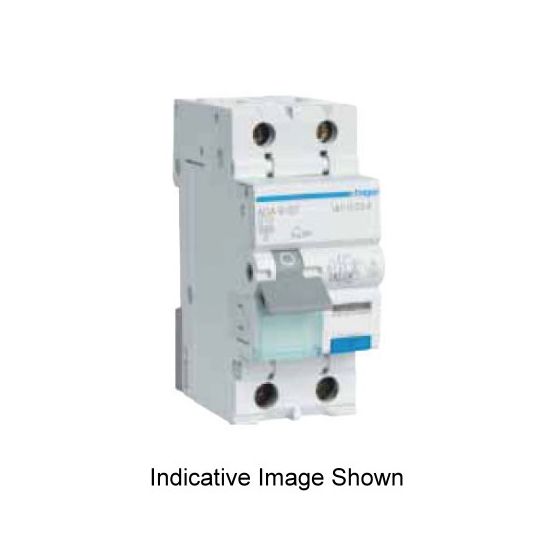

Hager Combination RCD Circuit Breaker RCBO 2Pole 16 Amp 230-240V AC 6 kA 2Module 36mm DIN Rail

$Hager\Hager_ADA9.jpg$

Description

Combination RCD Circuit Breaker RCBO, 230-240 Volt, 16 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 2 Pole, 2 Module 36 mm, 1/16 sq-mm Flexible/ 1/25 sq-mm Rigid Terminal, Screw Connection, IP20, DIN Rail Mounting, 25 to 70 deg C, 83 mm Height, 35 mm Width, 68 mm Depth

Key Specifications

Barcode (EAN-13)	3250611011606
SKU	HAGADA916T
Brand	Hager
Range Name	onekombo
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADA916T
Current	16 Amp
Connection Type	Screw
Current	16 Amp
Depth	68 mm
Frequency	50 Hz
Height	83 mm
IP Rating	IP20
Interrupt Capacity	6 kA
Modules	2 Module 36 mm
Number Of Poles	2 Pole
Mounting Method	DIN Rail
Temperature	25 to 70 deg C
Terminal Connection	1 / 16 sq-mm Flexible / 1 / 25 sq-mm Rigid
Trip Sensitivity	30 mA
Trip Characteristic	C Curve
Voltage	230-240 Volt
Width	35 mm
