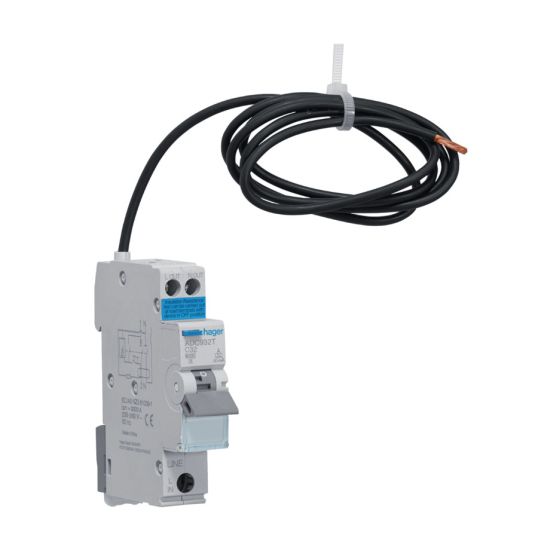

Hager Combination RCD Circuit Breaker RCBO Type A 32Amp 6kA 30mA C Curve 1 Pole 1 Module 17.5mm

$Hager\Hager_ADC932T.JPG$

Description

Compact combination devices which provide overcurrent protection and earth leakage protection. The Type A devices, with a switched neutral, are available in various current ratings from 6A - 40A. A 1 module RCBO is specifically designed for DIN rail enclosures but can also be used in Invicta panel boards. It is supplied with a 1 mtr long neutral-in fly lead.

Key Specifications

Barcode (EAN-13)	3250611033387
SKU	HAGADC932T
Brand	Hager
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Earth fault indication window ACC9xxT is Type 1 to comply with AS/NZS 3190 requirements Trip free mechanisms
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADC932T
Connection Type	Screw
Frequency	50 Hz
Current	32 Amp
Height	92 mm
Depth	70 mm
Interrupt Capacity	6 kA
IP Rating	IP20
Modules	1 Module 17.5 mm
Number Of Poles	1 Pole
Mounting Method	DIN Rail
Temperature	25 to 80 deg C
Terminal Connection	1 / 10 sq-mm Flexible / 1 / 16 sq-mm Rigid
Trip Characteristic	C Curve
Voltage	240 Volt
Width	17.7 mm
Trip Sensitivity	30 mA
