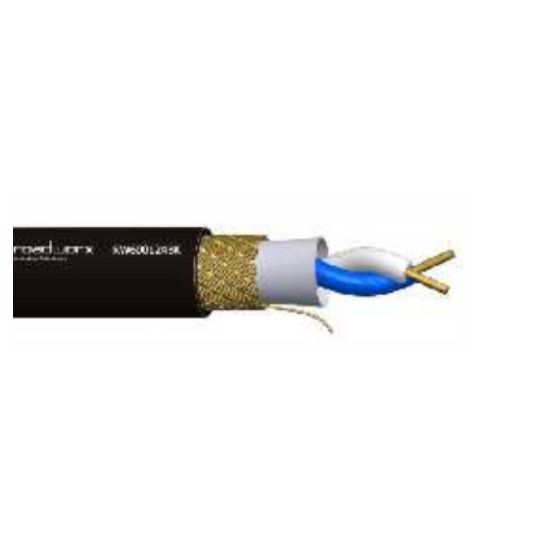

Madison 24 AWG 1 Pair Black Data & Control Cable Overall Screened Polyethylene/PVC

$Madison_Technologies\Madison_RW600124BK.jpg$

Description

Data & Control Cable, 24 AWG, Tinned Annealed Copper, 1 Pair, 7/0.2 +/-0.006 mm Strands, Overall Screened Screen, 4.5 mm +/-0.2 mm Overall Diameter, 45 mm Bend Radius, >=0.25 mm Insulation Thickness, >=0.7 mm Sheath Thickness, Insulation: >=300% Outer Sheath: >=100% Elongation, Insulation: 13.6 N/sq-mm Sheath: >=12 N/sq-mm Tensile Strength, 93.25 Ohm/km Conductor Resistance, 1 Screen Coverage, Aluminium Foil w/Tinned Annealed Copper Drain Wire Screen, White-Blue/Blue-White Core, Polyethylene Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, EIA RS-485

Key Specifications

SKU	MADRW600124BK500
Brand	Madison
Range Name	Roadworx
Product Type	Data & Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RW600124BK500
Bend Radius	45 mm
Conductor Resistance	93.25 Ohm/km
Conductor Size	24 AWG
Conductor Type	Tinned Annealed Copper
Core Colours	White-Blue/Blue-White
Elongation	Insulation: >=300% Outer Sheath: >=100%
Insulation Material	Polyethylene
Insulation Thickness	>=0.25 mm
Number of Pairs	1 Pair
Overall Diameter	4.5 mm +/-0.2 mm
Screen Material	Aluminium Foil w/Tinned Annealed Copper Drain Wire
Screen Coverage	100%
Sheath Colour	Black
Screen Format	Overall Screened
Sheath Material	PVC
Sheath Thickness	>=0.7 mm
Standards	EIA RS-485
Stranding	7/0.2 mm +/-0.006 mm
Temperature	-15 to 70 deg C
Tensile Strength	Insulation: 13.6 Nm/Sheath: >=12 Nm
