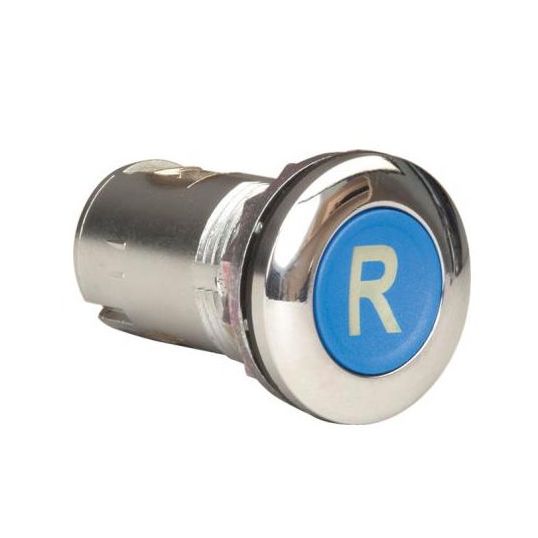

Sprecher+Schuh Pushbutton Complete Flush Head Metal Body k Non-Illuminated Rotate Blue 22.5mm Panel

Description

Pushbutton Complete Flush Head Metal Body, Size: 22.5 mm, Non-Illuminated, Blue Labelled R, Reset, Rotate, Flush Head, Reset Rod, IP65, IP66, Mounting Diameter: 22.5 mm, Panel Mount, Stainless Steel Housing, Zinc Bezel, Blue, Finish: Chrome-Plated, -25 to 70 deg C, 29.6 mm Diameter, 4.5 mm Depth

Key Specifications

Barcode (EAN-13)	9321807232144
SKU	S&SD7M-R611
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Pushbuttons Complete

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7MR611
Colour	Blue
Depth	4.5 mm
Diameter	29.6 mm
Head Type	Flush
IP Rating	IP65/66
Mounting Diameter	22.5 mm
Mounting Method	Panel
Operator Profile	Blue Labelled R/Reset
Operator Action	Non-Illuminated Rotate Action
Temperature	-25 to 70 deg C
Size	22.5 mm
Reset Type	Reset Rod
