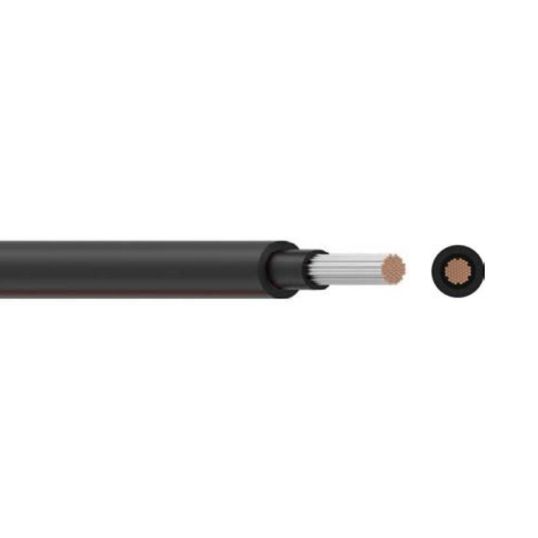

Elcon Cables 6mm DC Solar EM SDI XPO/XPO Black 120degC 500m
Loading...
Description
Solar Cable SDI, 0.6-1 kV, 6 mm, 1 Core, 5.3 mm Overall Diameter, 500 mtr Length, 21.2 mm Bend Radius, 3.39 mOhm/m Conductor Resistance, Red/Black Core, Electron Beam Cross Linked Compound Insulation, Electron Beam Cross Linked Compound Sheath, Black Sheath, 120 deg C
Key Specifications
| SKU |
ELNEN6TUVB500M
|
|---|---|
| Brand |
Elcon Cables
|
| Product Type |
Solar Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | EN6TUVB500M |
| Voltage | 0.6-1 kV |
| Conductor Size | 6 mm |
| Core Colours | Black/Red |
| Sheath Colour | Black |
| Overall Diameter | 5.3 mm |
| Temperature | 120 deg C |
| Number of Cores | 1 Core |
| Bend Radius | 21.2 mm |
| Conductor Resistance | 3.39 mOhm/m |
| Insulation Material | Electron Beam Cross Linked Compound |
| Sheath Material | Electron Beam Cross Linked Compound |
