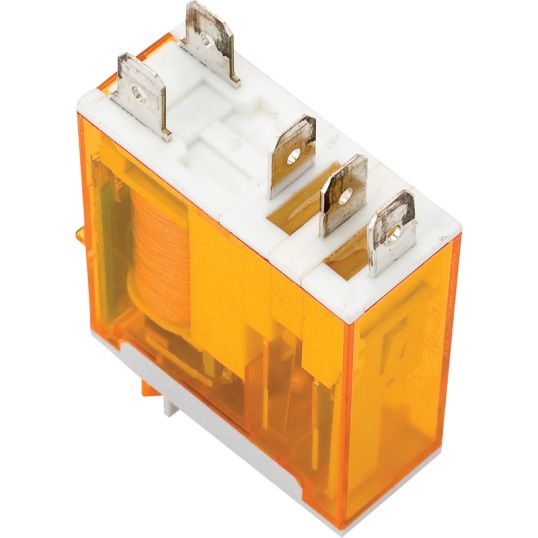

Finder Miniature Relay Plug In Or Faston Connection 1P 1CO 16A 12VDC 5 Pin Flat

$Finder\Finder_4661.jpg$

Description

Miniature Relay, 250 Volt AC, 12 Volt DC Coil Voltage, 16 Amp, 0.55 kW, 5 Pin Flat, 1 Pole, 1 Changeover Configuration, 300 Ohm, 5 ms Breaking/15 Making Operating Time, 100000 Cycles, Plug-In/Faston Connection Mounting, Silver Nickel (Ag/Ni) Contact, -40 to 70 deg C, 32.8 mm Height, 29 mm Width, 12.4 mm Depth, With PB plus/LED plus/Mechanical Indicator

Key Specifications

Barcode (EAN-13)	8012823301716
SKU	FID46.61.007412VDC
Brand	Finder
Range Name	Series 46

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	4661007412VDC
Contact Configuration	1 Changeover
Depth	12.4 mm
Contact Material	Silver Nickel (Ag/Ni)
Current	16 Amp
Height	32.8 mm
Mounting Method	Plug-In/Faston Connection
Number Of Poles	1 Pole
Operating Coil Voltage	12 Volt DC
Operating Cycles	100000 Cycles
Operating Time	5 ms Breaking/15 Making
Please Note	With PB plus/LED plus/Mechanical Indicator
Resistance	300 Ohm
Pin Configuration	5 Pin Flat
Power Rating	0.55 kW
Temperature	-40 to 70 deg C
Voltage	250 Volt AC
Width	29 mm
