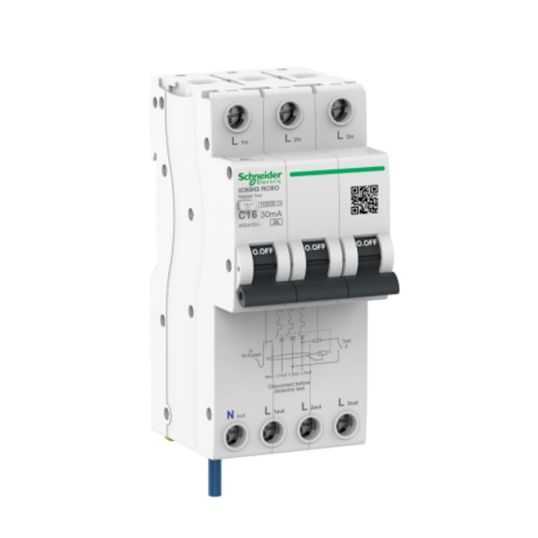

Schneider Acti9 iC60H3 RCBO 3P+N 20A 10kA 30mA Type A

$Schneider\Schneider_A9DC1920.JPG$

Description

Residual Current Circuit Breaker, 400-415 Volt, 20 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, 3 + N Pole, Screw Terminal, IP20, DIN Rail/Chassis Mounting, 2.5 Nm Tightening Torque, 5 to 60 deg C, 112 mm Height, 54 mm Width, 77.2 mm Depth

Key Specifications

Barcode (EAN-13)	3606487022190
SKU	SHNA9DC1920
Brand	Schneider
Range Name	Acti 9 iC60H3
Product Type	Residual Current Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9DC1920
Current	20 Amp
Depth	77.2 mm
Height	112 mm
Frequency	50/60 Hz
Interrupt Capacity	10 kA
Mounting Method	DIN Rail/Chassis
Number Of Poles	3 Pole
IP Rating	IP20
Temperature	5 to 60 deg C
Voltage	400-415 Volt
Tightening Torque	2.5 Nm
Terminal Type	Screw
Width	54 mm
Trip Sensitivity	30 mA
