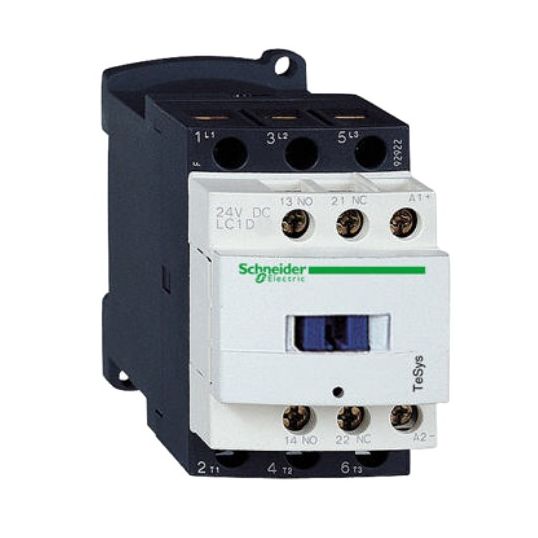

Schneider TeSys Contactor 15kW 3Pole 1NO+1NC 240VAC AC-3 <= 440V 32A - 240VAC 50/60 Hz Coil

$Schneider\Schneider_LC1D.jpg$

Description

Contactor, 240 Volt AC Control Circuit, 690 Volt AC/300 Volt DC Contact Voltage, 1 Normally Opened/1 Normally Closed Configuration, 15 kW AC3 at 380/400 Volt AC AC3 Rating, 32 Amp AC3 AC3 Rating, 50 Amp AC1 AC1 Rating, 3 Pole, 4-19 ms Opening/12-22 ms Closing Operating Time, Screw/Clamp Terminal, Rail/Plate Mounting, IP20, -40 to 60 deg C, 85 mm Height, 45 mm Width, 92 mm Depth

Key Specifications

SKU	TEELC1D32U7
Brand	Schneider
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D32U7
AC1 Rating (Amps)	50 Amp AC1
AC3 Rating (Amps)	32 Amp AC3
AC3 Rating (kW)	15 kW AC3 at 380/400 Volt AC
Contact Configuration	1 Normally Opened & 1 Normally Closed
Contact Voltage	690 Volt AC/300 Volt DC
Control Circuit Voltage	240 Volt AC
Depth	92 mm
Height	85 mm
IP Rating	IP20
Mounting Method	Rail/Plate
Number Of Poles	3 Pole
Operating Time	4-19 ms Opening/12-22 ms Closing
Temperature	-40 to 60 deg C
Terminal Connection	Screw/Clamp
Width	45 mm
