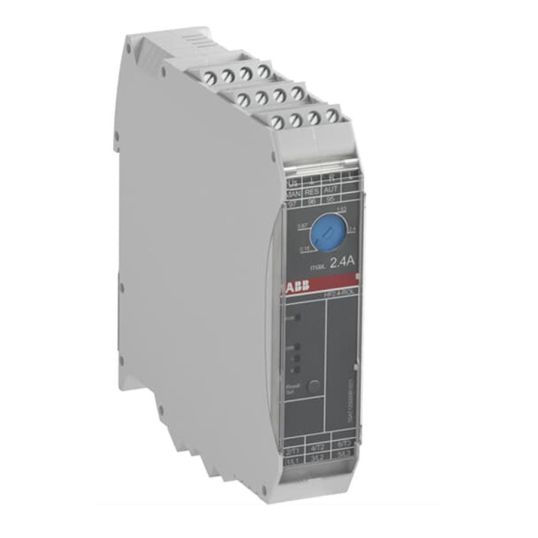

ABB HF-ROL Range Motor Starter Reversing Electronic Compact 0.75kW 42-550V 0.18-2.4A IP20

$ABB\ABB_HF2.4-ROL-24VDC.jpg$

Description

Motor Starter Reversing, 42-550 Volt AC, 2.4 Amp, 50/60 Hz, 0.75 kW, 3 Pole, 0.18-2.4 Amp Setting Range, Screw Terminal, ROL Starter w/Overload Protection, IP20, DIN Rail Mounting, 10000 Mechanical Cycles, 30000000 Electrical Cycles Operating Cycles, -25 to 70 deg C, 99 mm Height x 22.5 mm Width x 114.5 mm Depth

Key Specifications

Barcode (EAN-13)	4013614515552
SKU	ABBHF2.4-ROL-24VDC
Brand	ABB
Product Type	Motor Starters Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	HF2.4-ROL-24VDC
Action	ROL Starter w/Overload Protection
Connection Type	Screw
Current	2.4 Amp
Depth	114.5mm
Frequency	50/60 Hz
Height	99mm
IP Rating	IP20
Operating Cycles	Mechanical: 10000 Cycle, Electrical: 30000000 Cycle
Operating Temperature	-25 to 70 deg C
Setting Range	0.18-2.4 Amp
Voltage	42-550 Volt AC
Wattage	0.75 kW
Width	22.5mm
