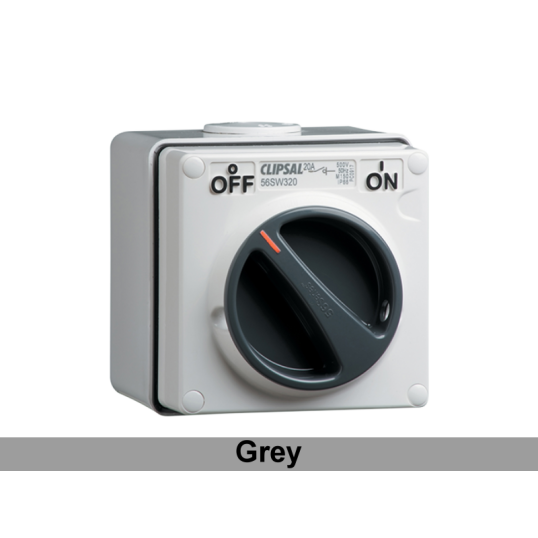

Clipsal Isolating Switch Surface Mounting Weatherproof 3P 20A 500V 1 way Grey IP66
Loading...
Description
Isolator Switch Weatherproof, 500 Volt, 20 Amp AC1, 50 Hz, 1 Gang, 3 Pole, 1 Way, ON/OFF, Rotary, Screw Connection, Surface Mounting, IP66, 1.5-16 mm Terminal Capacity, Polycarbonate, Grey, -25 to 75 deg C, 107 mm Height, 101 mm Width, 108 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554198800
|
|---|---|
| SKU |
CLI56SW320GY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SW320-GY |
| Colour | Grey |
| Connection Type | Screw |
| Depth | 108 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Legend | ON/OFF |
| Material | Polycarbonate |
| Mounting Method | Surface |
| Method of Operation | Rotary Knobs |
| Number Of Poles | 3 Pole |
| Number Of Gangs | 1 Gang |
| Number Of Ways | 1 Way |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1.5-16 mm |
| Voltage | 500 Volt |
| Width | 101 mm |
