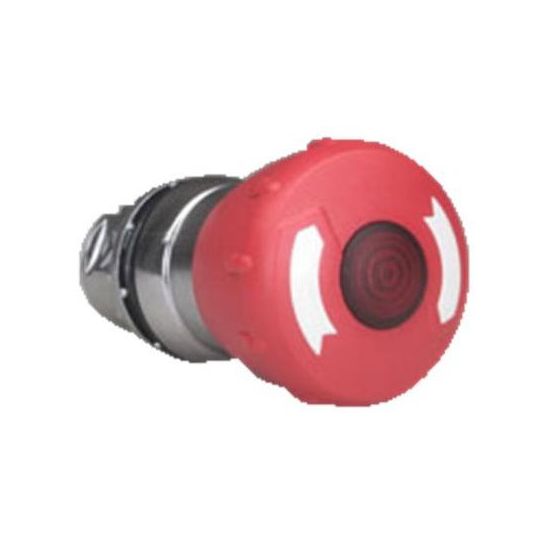

Sprecher+Schuh Emergency Stop Actuator Only 40mm Head Metal Body k Twist to Release Action Red

Description

Emergency Stop Actuator, Mushroom Actuator Head, Emergency Stop Operator, Twist to Release Operator Action, 3000000 Cycles, 44 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Hole Diameter, IP65/66, Red, -25 to 70 deg C, 40 mm Diameter

Key Specifications

Barcode (EAN-13)	9321807231697
SKU	S&SD7M-LMT44
Brand	Sprecher+Schuh
Range Name	D7
Product Type	P/B Actuators Emergency Stop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7MLMT44
Actuator Head	Mushroom
Colour	Red
Diameter	40 mm
Mounting Hole Diameter	22.5 mm
IP Rating	IP65/66
Operating Cycles	3000000 Cycles
Mounting Method	Panel
Operator Action	Twist to Release
Operator Type	Emergency Stop
Temperature	-25 to 70 deg C
Tightening Torque	44 Nm
