Matchmaster Digital TV Antenna Phased Array UHF 28-51 Channel 12dB Gain Female Connecctor

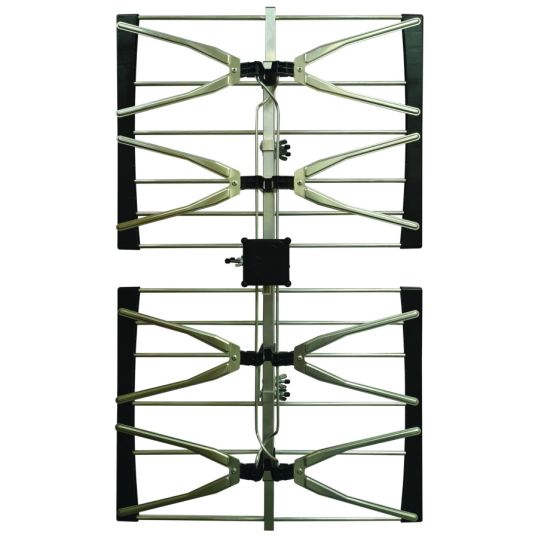

$Matchmaster\Matchmaster_02MM-MDU36.jpg$

Description

The 02MM-MDU36 is a full-sized, high-gain, phased array UHF antenna covering channels 28-51. Featuring a new IP66 balun case, a Dacromet finish on clamping components and thicker aluminium tube walls, the new MDU36 is superior in corrosion resistance, making it the best choice in antennas for the harsh Australian coastal regions. In addition, the MDU36 features a built-in 694MHz low pass 4G/5G LTE filter providing greater than 30dB of attenuation @ 750MHz to help eliminate the increasingly present mobile cellular signals from disrupting your viewing experience. As a result, the MDU36 is the perfect choice for all reception zones in coastal areas for horizontal and vertical UHF broadcasts.

Key Specifications

Barcode (EAN-13)	9322190012429
SKU	MAT02MM-MDU36
Brand	Matchmaster
Product Type	TV Antennas

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	IP66 balun casing is perfect for use in coastal areas to help prevent moisture and salt ingress Receives UHF Channels 28-51 with a 694MHz low pass 4G/5G LTE filter > 30dB at 750 MHz Dacromet finish to all clamping components for superior corrosion resistance with new thicker aluminium tube walls for superior durability New T-bracket in heavy-duty aluminium alloy Easy to assemble with a vertical mounting option High-gain phased array for optimum reception
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	02MM-MDU36
Beam Width	48 deg Horizontal : 29 deg Vertical Beam
Connector Type	F-Type
Channels	28-51 UHF
For Use With	Digital TV
Frequency	520-694 MHz
Front to Back Ratio	20 dB
Number of Elements	36 Elements
