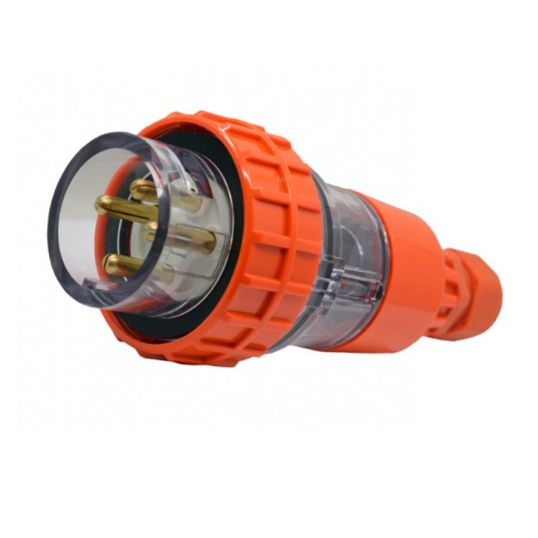

GSME Trader Buffalo Straight Plug 10A 500V 4Pin IP66 M25 x 1.5 192mm HT x 79.8mm WD

Description

Plug Straight, 500 Volt, 10 Amp, 4 Pin Round, 4.1 mm Diameter Terminal Capacity, 12-18 sq-mm Cable Entry, M25 x 1.5 mm Cable Gland Size, 12-28 sq-mm Cable Nominal Diameter, IP66, 192 mm Height, 79.8 mm Width

Key Specifications

Barcode (EAN-13)	9349703030947
SKU	GSMBUP410
Brand	GSME Trader
Range Name	Buffalo
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Straight body format providing a more traditional design Angled format when space is limited, or to reduce plug and cable protrusion as cable is angled downwards Ribbed lock ring for secure fitment and gripping with gloved hands Rear cord entry and cable gland ensuring IP66 rating Insulated pins in accordance to AS/NZS3112 Internal cable clamp to support electrical connections Size 1 single and three phase suits smaller to medium loads Size 2 single and three phase suits medium to large loads Small extension sockets 10A and 15A accept cables from 6-12mm Size 1 extension sockets 10A and 20A accept cables from 12-18mm
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BUP410
Cable Nominal Diameter	12-28 sq-mm
Cable Gland Size	M25 x 1.5 mm
Cable Entry	12-18 sq-mm
Current	10 Amp
Height	192 mm
IP Rating	IP66
Pin Configuration	4 Pin Round
Terminal Capacity	4.1 mm Diameter
Voltage	500 Volt
Width	79.8 mm
