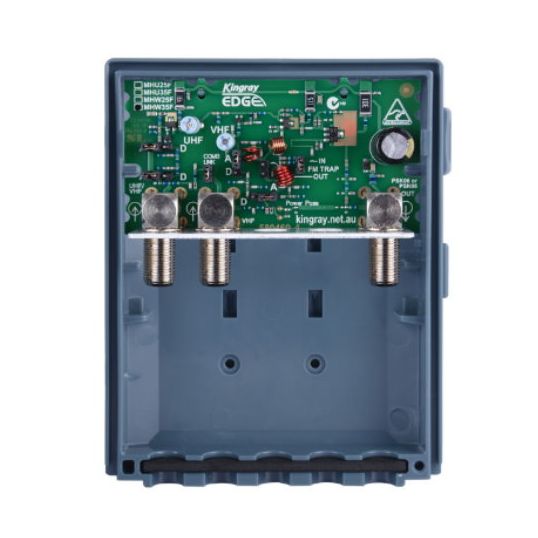

Kingray Masthead Amplifier 26/35 dB VHF/UHF Gain F-Type Connector

$Kingray\Kingray_MHW35F.jpg$

Description

Masthead Amplifier, 174-230 MHz/520-694 MHz, 2 Inputs, 1 Outputs, 26 dB VHF/35 dB UHF Gain, F-Type Connection, Wall Mounting, Power Consumption: 80 mA

Key Specifications

SKU	KIGMHW35F
Brand	Kingray

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	15 dB gain control for UHF 16-12 dB tilt control for VHF Separate VHF and UHF inputs or combined input FM radio 88-108 MHz pass through selectable 4G/LTE filtering Weatherproof housing High output figure of 108 dB IMR3 (DIN45004B) Suitable power supply: PSK06 series or PSK08 series
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	MHW35F
Connection Type	F-Type
Frequency	174-230 MHz/520-694 MHz
Gain (Maximum)	26 dB VHF/35 dB UHF
Number of Outputs	1 Out
Mounting Method	Wall
Number of Inputs	2 In
Please Note	Power Consumption: 80 mA
Product Type	simple
