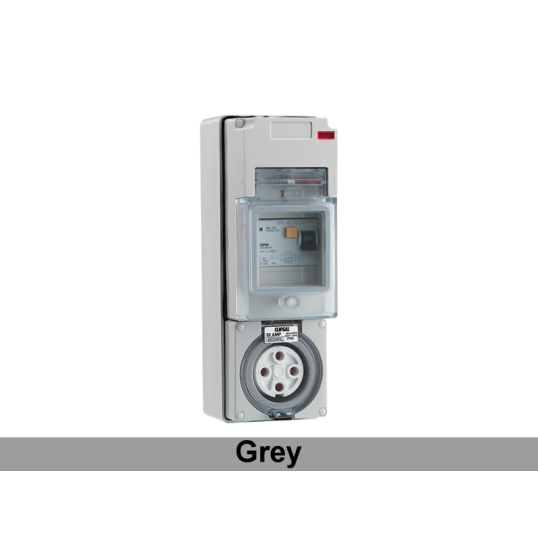

Clipsal Socket Outlet Surface Mounting RCD Protected 3Ph 32A 500V 4 Pin Round 30mA Grey IP66

$ClipsalNew\C0001868-GY.png$

Description

Socket Outlet RCD Protected, 500 Volt, 32 Amp, 3 Phase Phase, 4 Pole, 3 Gang, 4 Pin Round, 30 mA Trip Sensitivity, Screw Connection, 4-16 mm Cable Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 294 mm Height, 101 mm Width, 110 mm Depth

Key Specifications

Barcode (EAN-13)	9311554276966
SKU	CLI56C432RCGY
Brand	Clipsal
Range Name	56 Series
Product Type	Socket Outlets RCD Protected

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56C432RC-GY
Colour	Grey
Connection Type	Screw
Current	32 Amp
Depth	110 mm
Height	294 mm
IP Rating	IP66
Material	Polycarbonate
Mounting Method	Surface
Number Of Gangs	3 Gang
Number Of Poles	4 Pole
Phase	3 Phase
Pin Configuration	4 Pin Round
Temperature	-25 to 75 deg C
Terminal Capacity	4-16 mm Cable
Trip Sensitivity	30 mA
Width	101 mm
Voltage	500 Volt
