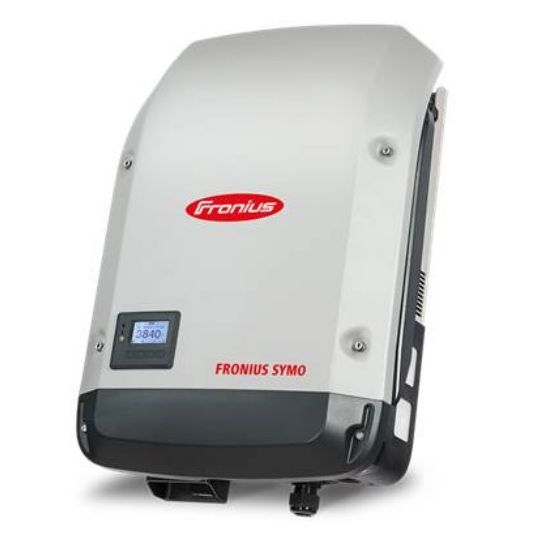

Fronius Symo Solar Inverter Transformerless 2MPPT Three Phase 8.2kW 16A

Description

Solar Inverter Grid-connected, 3 Phase Phase, 150-1000 Volt DC Input, 595 Volt DC Nominal, 267-800 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 16 Amp DC Max. Input, 2 MPPTs, 8.2 kW AC Output, 8200 VA AC Max. Apparent, 50/60 Hz, 11.8 Amp AC Output, 0.85-1 Inductive/Capacitive Power Factor, 0.98 Efficiency, 0.977 European Weighted Efficiency, 0.99 MPPT Efficiency, Transformerless, WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485, Regulated Air Cooling, IP65, -25 to 60 deg C

Key Specifications

SKU	FRNSYMO8.2-3-M
Brand	Fronius
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	14
UNSPSC Class	26111600
UOM	EA
Vendor Product	SYMO8.2-3-M
AC Max. Apparent Power	8200 VA
AC Operating Frequency	50/60 Hz
AC Output Power	8.2 kW
Communication Port	WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485
AC Output Current	11.8 Amp
Cooling Method	Regulated Air
DC Input Voltage	150-1000 Volt
DC Nominal Voltage	595 Volt
DC MPPT Voltage Range	267-800 Volt
DC Start-up Voltage	200 Volt
DC Max. Input Current	16 Amp
Efficiency	0.98
European Weighted Efficiency	0.977
IP Rating	IP65
MPPT Efficiency	0.99
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	0.85-1 Inductive/Capacitive
Relative Humidity	0-100%
Topology	Transformerless
Width	431 mm
