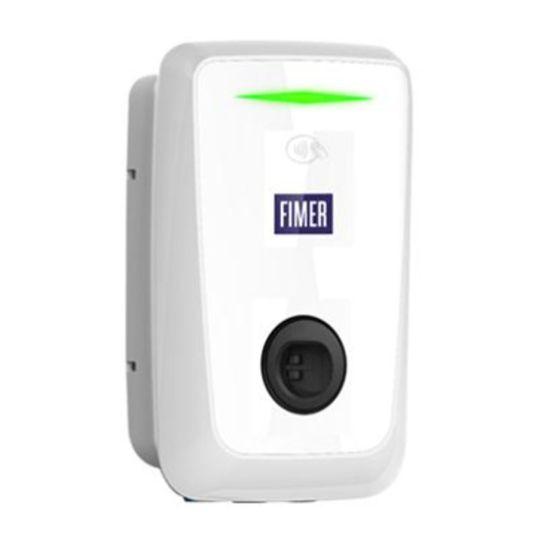

Fimer SPA Flexa AC Wallbox Future Net 7.4 kW 1 PH T2 Cord
Loading...
Description
Flexa AC Wallbox Future Net, 7.4 kW Power Output, 1 Phase, T2 Cord Connector
Key Specifications
| SKU |
FIM3Q760713200F
|
|---|---|
| Brand |
Fimer SPA
|
| Product Type |
AC Wallbox Stand Alone
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | 3Q760713200F |
| Certifications | CE; AUX; UL |
| Communication Protocol | WIFI |
| Cord Length | 5 mtr |
| Connector Type | T2 Socket |
| Depth | 14 mm |
| Height | 28 mm |
| IK Rating | IK08 |
| Input Current | 16 Amp |
| Input Frequency | 50 Hz |
| Input Voltage | 230 Volt |
| IP Rating | IP55 |
| Item Weight | 7 kg Socket/8.5 kg Cord |
| Operating Temperature | -25 to 50 deg C |
| Phase | 3 Phase |
| Power Output | 22 kW |
| Storage Temperature | -25 to 70 deg C |
| Width | 48 mm |
| Standards | IEC61851-1 |
| Relative Humidity | 0-95% |
| Wireless Technology | RFID / WIFI |
