Belden 7953A Data Cable Cat6 Multi-Conductor DataTuff 4 Pair 23AWG Polypropylene/PVC Black

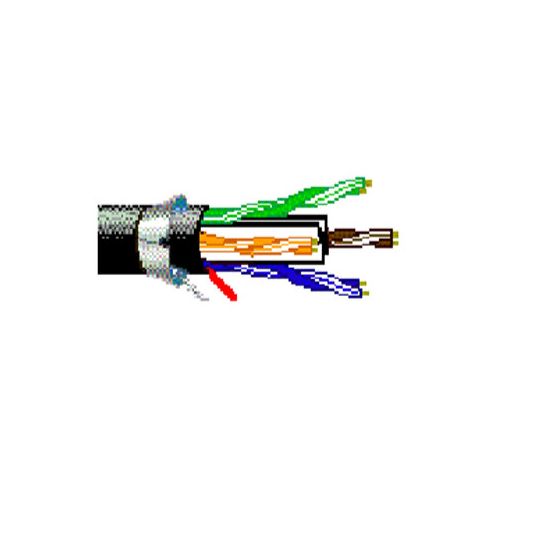

$Belden\Belden_7953A0101000.jpg$

Description

CAT 6 Data Cable, 300 Volt, Solid, 23 AWG, 8.2 Ohm/100m Conductor Resistance, 250 MHz Frequency Bandwidth, Aluminium Foil/Polyester Tape 100% Coverage, Cat 6, 4 Pair, 4 in Bend Radius, 40 lbs Max. Pulling Force, Bare copper Conductor, Polypropylene Insulation, PVC Sheath, Black Sheath, 40 to 75 deg C, 1000 ft Length, 0.335 in Outside Diameter

Key Specifications

SKU	BEL7953A0101000
Brand	Belden
Range Name	Inca

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	EA
Vendor Product	7953A 0101000
Bend Radius	4 inch
Cable Type	Cat 6
Conductor Material	Bare copper
Conductor Resistance	8.2 Ohm/100m
Conductor Size	23 AWG
Conductor Type	Solid
Frequency Bandwidth	250 MHz
Insulation Material	Polypropylene
Max. Pulling Force	40 lbs
Outside Diameter	0.335 inch
Pair Count	4 Pair
Sheath Colour	Black
Sheath Material	PVC
Shielded Type	Aluminium Foil/Polyester Tape 100% Coverage
Temperature	40 to 75 deg C
Voltage	300 Volt
