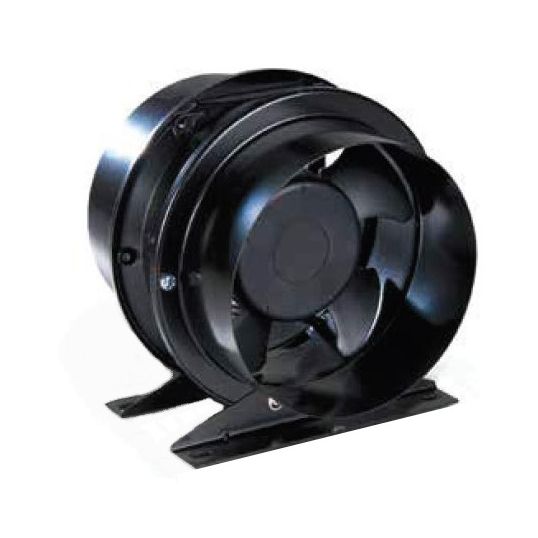

AllVent In-Line Axial Exhaust Fan 150mm 240 Volt 328 cu-m/hr 41dBA Black
Loading...
Description
The A series axial fans are housed in a robust, non-corrosive metal casing.
Key Specifications
| SKU |
ALVALVA60
|
|---|---|
| Brand |
AllVent
|
| Range Name |
A Series
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 40101600 |
| UOM | EA |
| Vendor Product | ALV110 |
| Air Flow Cubic Meters per Hour | 328 cu-m/hr |
| Air Flow Litres per Second | 91 l/sec |
| Colour | Black |
| Fan Size | 150 mm |
| Duct Size | 146 mm |
| Fan Speed | 2880 rpm |
| Frequency | 50 Hz |
| Height | 181 mm |
| Material | Metal |
| Noise Level | 41 dBA |
| Phase | 1 Phase |
| Width | 157 mm |
| Wattage | 35 Watt |
| Voltage | 240 Volt |
