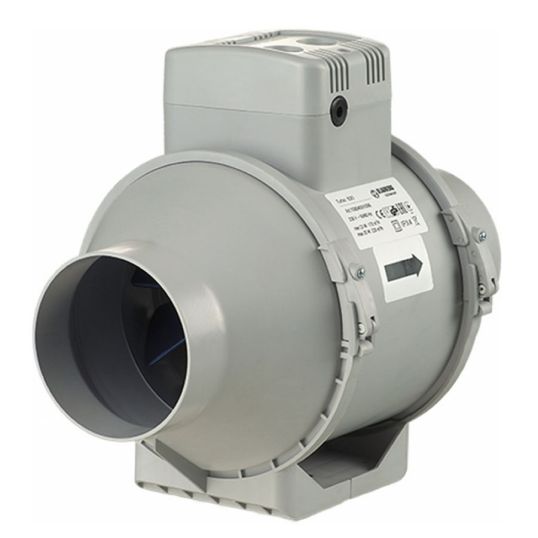

Blauberg In-Line Ducted Exhaust Fan 100mm 230V 0.10-0.11 Amp 23-25W 170-220 cu-m/hr 27-32 dBA at 3m 1980-2545 rpm Grey

Name: Ducted Exhaust Fan In-Line Ducted Exhaust Fan In-Line
SKU: BLATURBO100
Availability: InStock

$Blauberg\Blauberg_BLATURBO100.JPG$

Description

Ducted Exhaust Fan In-Line, 100 mm, 230 Volt, 0.10/0.11 Amp, 23-25 Watt, 50/60 Hz, 1 Phase Phase, 170/220 cu-m/hr, 47-61 l/sec, 27-32 dBA at 3 mtr, 1980-2545 rpm, IPX4, 60 deg C, Plastic, Grey, 303 mm Length, 241 mm Height, 164 mm Diameter

Key Specifications

SKU	BLATURBO100
Brand	Blauberg
Range Name	Turbo
Product Type	Exhaust Fans Ducted

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Supply and extract ventilation Systems installed in various premises Mounting in kitchens, bathrooms and other humid premises Ventilation air ducts requiring high pressure, powerful air flow and low noise level Compatible with dia 100 up to 315mm round air ducts The casing is made of low-flammable polypropylene Ventilation unit with terminal box Can be turned to any position Special design of the casing permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct Two-speed single-phase motor on ball bearings Equipped with thermal overheating protection
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	BLATURBO100
Colour	Grey
Air Flow Litres per Second	47-61 l/sec
Air Flow Cubic Meters per Hour	170-220 cu-m/hr
Diameter	164 mm
Fan Size	100 mm
Frequency	50/60 Hz
IP Rating	IPX4
Height	241 mm
Material	Plastic
Phase	1 Phase
Sound Level	27-32 dBA at 3 mtr
Temperature	60 deg C
Voltage	230 Volt
Speed	1980-2545 rpm
Wattage	23-25 Watt
