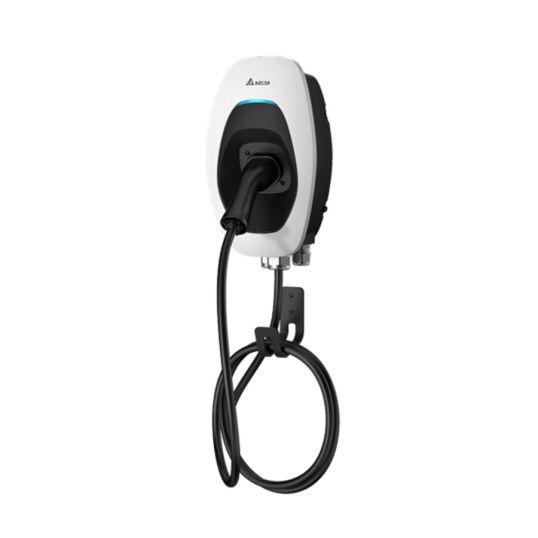

NHP Delta EV Charger AC Max 22KW Type 2 Plug 5m Cable Basic

Description

EV Charger, 1 Phase: 230 Volt AC, 3 Phase: 415 Volt AC Input Voltage, 32 Amp Input Current, 32 Amp Output Current, 50-60 Hz Input Frequency, 22 kW Power Output, 2000 mtr Max. Altitude, Type 2 Vehicle Connector, IP55, IK09,-30 to 50 deg C,-40 to 80 deg C Storage Temperature, 95 % RH Relative Humidity, CE, RCM, AS/NZS 3000:2007, IEC 60947-2, 371mm Height, 218mm Width, 167mm Depth, 3.7 kg

Key Specifications

SKU	NHPEIAWE22KTBE5A02
Brand	NHP
Range Name	Delta
Product Type	EV Charger

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RFID and ISO 15118 authentication for user management (Smart version) IP55 Ingress Protection IP55 and wall/pole installation provides high adaptability IP55 and wallmount/stand installation provides high adaptability Modern and Stylish design Maximum charging current selected by hardware DIP switch Wall mounted or Stand Internal RCD AC 30 mA , DC 6 mA Single phase: 230 Volt, 50-60 Hz, 32 Amp ( maximum) Three Phase:400 Volt, 50 - 60 Hz, 16 Amp, 32 Amp (Maximum)
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	EIAWE22KTBE5A02
Certifications	CE/R cm
Connector Type	Type 2 Vehicle
Depth	167 mm
IK Rating	IK09
Height	371 mm
Input Current	32 Amp
Input Voltage	1 Phase: 230 Volt AC/3 Phase: 415 Volt AC
Input Frequency	50-60 Hz
IP Rating	IP55
Item Weight	3.7 kg
Max. Operating Altitude	2000 mtr
Operating Temperature	-30 to 50 deg C
Output Current	32 Amp
Relative Humidity	95 % RH
Power Output	22 kW
Standards	AS/NZS 3000:2007; IEC 60947-2
Storage Temperature	-40 to 80 deg C
Width	218 mm
