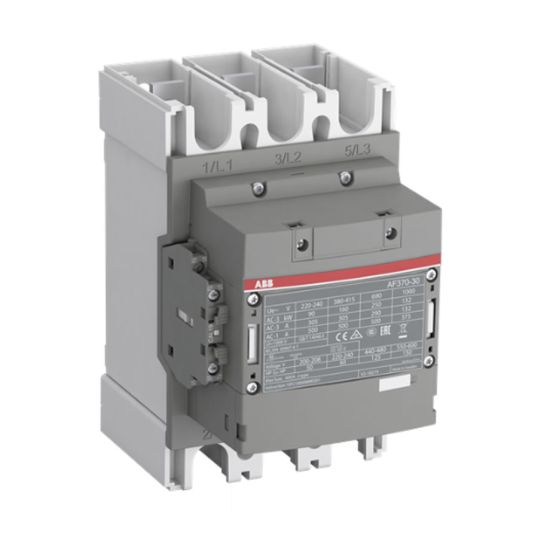

ABB AF Contactor 230VAC 600A AC1 370A AC3 3NO 3P 690VAC Coil

$ABB\ABB_AF370301113.jpg$

Description

Contactor, 230 Volt AC Coil Voltage, 600 Amp AC3 Rating, 370 Amp AC1 Rating, 690 Volt AC Contact Voltage, 3NO Configuration, 3, Lug Ring Terminal,-40 to 70 deg C, 140mm Height, 225mm Width, 180mm Depth, 3P Pole and Throw Configuration

Key Specifications

Barcode (EAN-13)	7320500481899
SKU	ABBAF370301113
Brand	ABB
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AF contactors are AC/DC operated AF09-AF38 contactors include an electronic coil interface accepting a wide control voltage Ucmin-Ucmax Only four coils cover control voltages 24-500 Volt AC or 20-500 Volt DC AF..Z contactors equipped with a Z coil type allow direct control by 24 Volt DC, 500 mA PLC output and obtain a reduced holding coil consumption AF..Z contactors withstand short dips and voltage interruptions (SEMI F47-0706 compliance) AF40-AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 Volt AC and 220 Volt DC, these contactors are of the block type design with 3 main poles AF contactors have built in surge protection and does not require any additional surge suppressors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	AF370301113
AC1 Rating (Amps)	370 Amp AC1
AC3 Rating (Amps)	600 Amp AC3
Contact Configuration	3 Normally Opened
Contact Voltage	690 Volt AC
Depth	180 mm
Height	140 mm
Number Of Poles	3 Pole
Operating Coil Voltage	230 Volt AC
Please Note	3P Pole and Throw Configuration
Temperature	-40 to 70 deg C
Terminal Connection	Lug Ring
Width	225 mm
