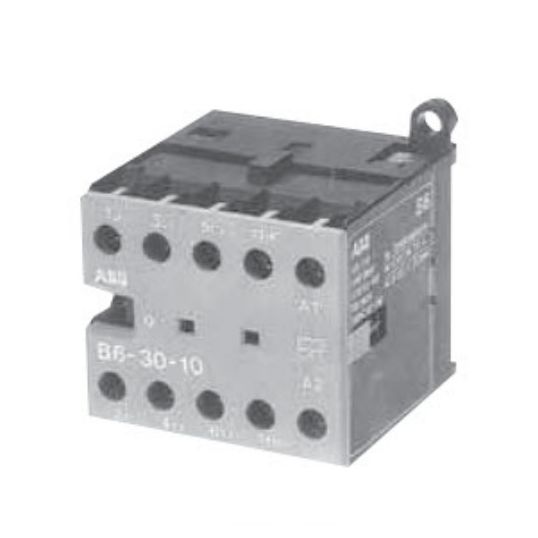

ABB Contactor General Purpose AC Operated Non-Reversing 3 Pole 3kW 9A AC3 6A AC1 24V 3NO Auxilary DIN Rail/Wall Mount

$ABB\ABB_B630.jpg$

Description

Contactor General Purpose AC Operated Non-Reversing, 24 Volt AC, AC3 Rating (kW): 3, AC3 Rating (Amps): 9, AC1 Rating (Amps): 6, 690 Volt AC, 3NO Auxiliary, 3 Pole, Screw Terminal, DIN Rail Mount or Base/Wall, IP20, -25 to 55 deg C, 57.5 mm Height, 52.5 mm Width, 46.5 mm Depth

Key Specifications

Barcode (EAN-13)	4013614051210
SKU	ABBB6301001
Brand	ABB
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Control circuit AC operated, low consumption coil Hum-free coil Contacts configuration 30-01 fulfills the requirements for Mirror contacts Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	B6301001
AC1 Rating (Amps)	6 Amp AC1
AC3 Rating (Amps)	9 Amp AC3
AC3 Rating (kW)	3 kW
Contact Configuration	3 Normally Opened Aux
Contact Voltage	690 Volt AC
Depth	46.5 mm
Height	57.5 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base/Wall
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt AC
Temperature	-25 to 55 deg C
Terminal Connection	Screw
Width	52.5 mm
