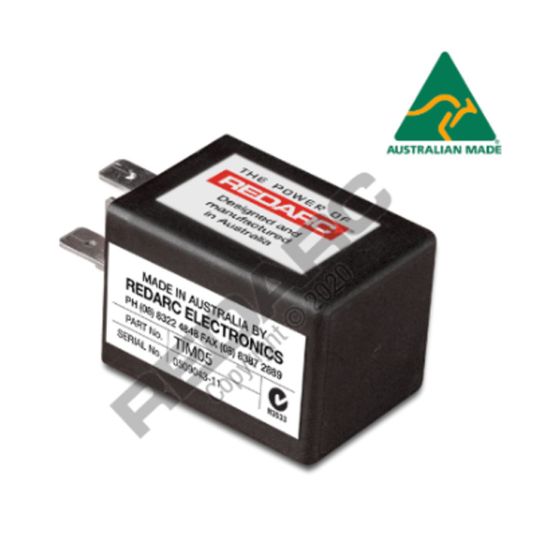

Redarc Time Delay Relay 10A Multifunction 12/12V

$Redarc\Redarc_TIM05.jpg$

Description

The TIM05 and TIM06 timers can be used in a 12 Volt or 24 Volt negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.

Key Specifications

SKU	AEITIM05
Brand	Redarc
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The timer switches the internal relay to provide output on PIN 87. (Positive output only) The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1) Use Switch 2 to select time range between Seconds and Minutes Use the potentiometer to adjust time (increasing in clockwise direction) User adjustable 1- 60 seconds/minutes Change over type relay
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	TIM05
Current	10 Amp
Depth	75 mm
Height	30 mm
Timing Function	Multifunction
Width	24 mm
Voltage	12 / 12 Volt
