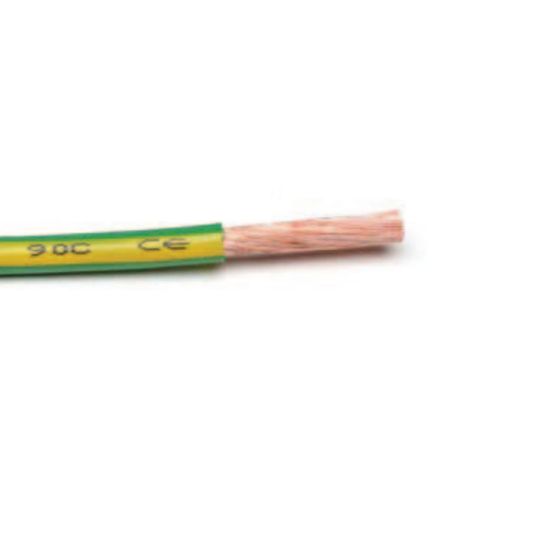

Aflex Flexible Wire Single Insulated 1 Core 35mm 0.6/1kV Stranded Copper TPE Green/Yellow

Description

Flexible Cable, 35 mm, Stranded Copper, 0.6-1 kV, 1 Core, 1040/0.2 mm Strands, 11 mm Overall Diameter, Static 55 mm Bend Radius, 0.554 Ohm/km Conductor Resistance, Special TPE Insulation, Green/Yellow Insulation, Unsheathed Sheath, Static -30 to 90 deg C Flexible -20 to 90 deg C, AS/NZS 5000.1 AS/NZS 1125 IEC 60332-1 AS/NZS 3808

Key Specifications

SKU	AFLAGL035
Brand	Aflex
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Conductors of extra fine wires to International Standards to ensure maximum flexibility Special TPE compound allows conductor temperature of 90 deg C UV resistant and flame retardant
Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	AGL035
Bend Radius	Static 55 mm
Conductor Resistance	0.554 Ohm/km
Conductor Size	35 mm
Conductor Type	Stranded Copper
Insulation Colour	Green/Yellow
Insulation Material	Special TPE
Number of Cores	1 Core
Overall Diameter	11 mm
Sheath Material	Unsheathed
Standards	AS/NZS 5000.1 AS/NZS 1125 IEC 60332-1 AS/NZS 3808
Temperature	Static -30 to 90 deg C Flexible -20 to 90 deg C
Stranding	1040/0.2 mm
Voltage	0.6-1 kV
