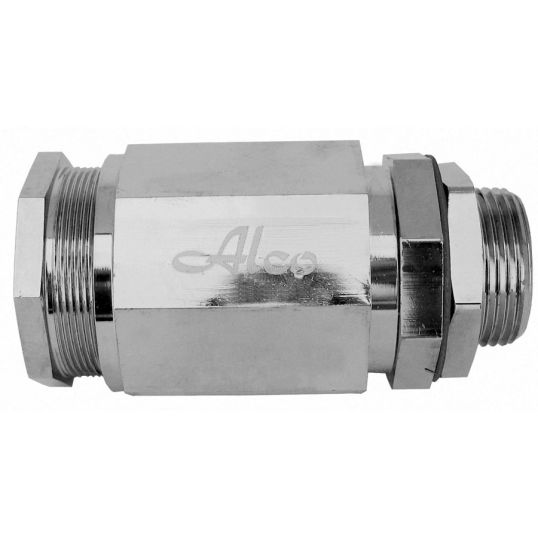

Alco Type AW Cable Gland Armoured General Purpose Weatherproof M120 112-128mm Brass Nickel Plated

Description

Cable Gland Armoured General Purpose Weatherproof, Thread Size: M120, 30 mm Thread Length, 112 mm Min. Sheath OD, 128 mm Max. Sheath OD, Min. Armour Wire: 3.15 mm, 4 mm Max. Armour Wire, 160 mm Width Across Flats, 173 mm Width Across Corners, IP66/68, TPE Seal, Brass Body, Nickel Plated Finish, -20 to 80 deg C, 48 mm Overall Length

Key Specifications

Barcode (EAN-13)	9328587016360
SKU	ALCAW120
Brand	Alco
Product Type	Cable Glands Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Indoor or outdoor use Provides seal on cable sheath Degree of protection against ingress of water IP66/68
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCAW120
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Armour Wire	4 mm
Max. Sheath OD	128 mm
Min. Armour Wire	3.15 mm
Min. Sheath OD	112 mm
Overall Length	48 mm
Seal Material	TPE
Temperature	-20 to 80 deg C
Thread Length	30 mm
Thread Size	M120
Width Across Corners	173 mm
Width Across Flats	160 mm
