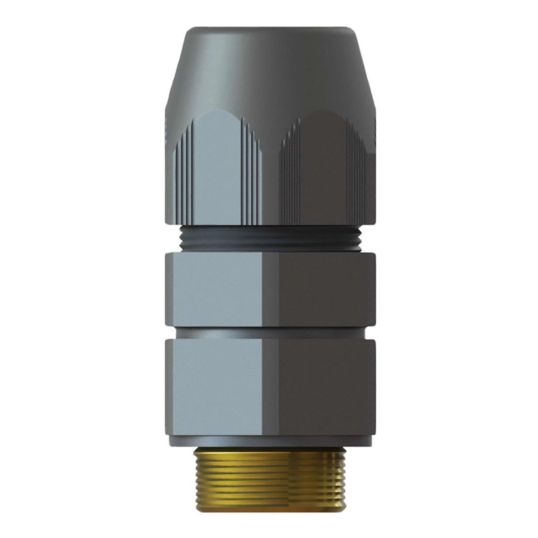

Alco Type AW STORM Cable Gland Armoured M50 39-47mm IP68 Brass Nickel Plated

Description

Cable Gland Armoured, Thread Size: M50, 22 mm Thread Length, 39 mm Min. Sheath OD, 47 mm Max. Sheath OD, 44 mm Max. Bedding OD, Min. Armour Wire: 2 mm, 2.5 mm Max. Armour Wire, For Steel Wire Armoured Cable, 10-70 Nm Cap/Sleeve, IP68, Brass Body, Nickel Plated Finish, -20 to 80 deg C, 30 mm Overall Length

Key Specifications

Barcode (EAN-13)	9314572023321
SKU	ALCAW50-NC
Brand	Alco
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fast fit No shroud required Corrosion resistant UV stabilised Zero halogen Comes with: gland, locknuts and earth tag
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCAW50-NC
Body Material	Brass
For Use With	Steel Wire Armoured Cable
Finish	Nickel Plated
Max. Bedding OD	44 mm
Max. Armour Wire	2.5 mm
IP Rating	IP68
Max. Sheath OD	47 mm
Min. Armour Wire	2 mm
Min. Sheath OD	39 mm
Overall Length	30 mm
Thread Length	22 mm
Temperature	-20 to 80 deg C
Thread Size	M50
Torque Rating	10-70 Nm Cap/Sleeve
