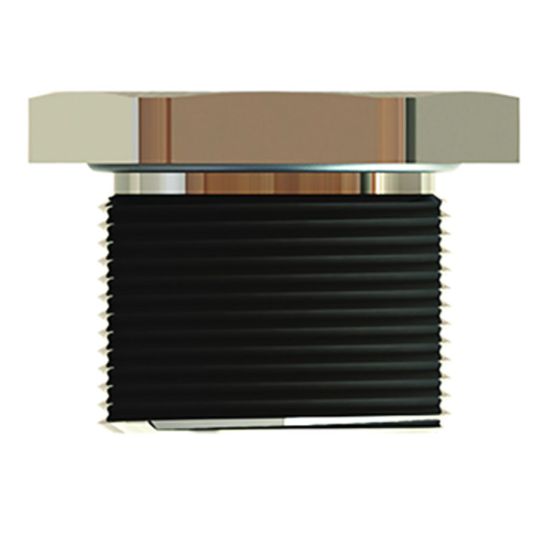

Alco Hazardous Area Brass Reducer Nickel Plated M40 Male to M25 Female 22mm OAL
Loading...
Description
Hazardous Area Brass Reducer, Gland Size M40 Male to M25 Female, 18 mm x 22 mm Thread Length, Hazardous Area Rating: Ex d IIC Gb, Ex e IIC Gb, Ex t IIC Db, IP 66/68, 45 mm Width Across Flats, 50 mm Width Across Corners, 12 N/m, IP66/68, Neoprene Seal, Brass Body, Nickel Plated, -40 to 100 deg C, 22 mm Overall Length
Key Specifications
| SKU |
ALCBIMBRBM40M25
|
|---|---|
| Brand |
Alco
|
| Product Type |
Hazardous Area Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCBIMBRBM40M25 |
| Cable Gland Size | M40 Male to M25 Female |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Hazardous Area Rating | Ex d IIC Gb/Ex e IIC Gb/Ex t IIC Db/IP 66/68 |
| Overall Length | 22 mm |
| Temperature | -40 to 100 deg C |
| Thread Length | 18 mm x 22 mm |
| Width Across Corners | 50 mm |
| Width Across Flats | 45 mm |
| Torque Rating | 12 Nm |
