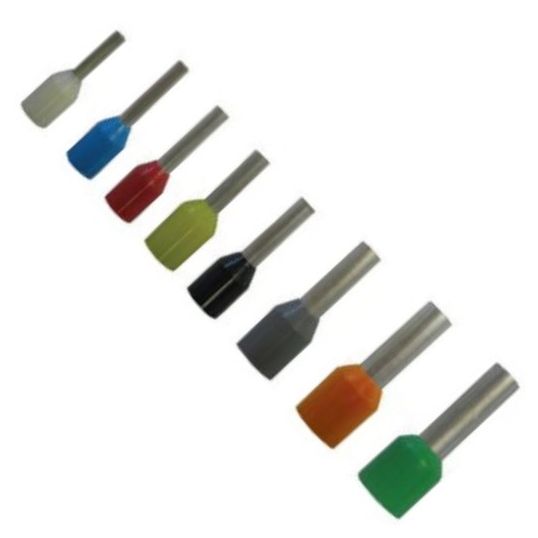

Alco Bootlace Ferrule Insulated 1.5mm 2x8mm Pin 14.5mm OAL Black

$Alco\Alco_Bootlace_Ferrules.jpg$

Description

Insulated Bootlace Ferrule, 1.5 mm, 1 Conductors, 600 Volt, 8 mm Pin Length, 2 mm Pin Diameter, 4 mm Collar Inside Diameter, 14.5 mm Overall Length, Copper Sleeve, Polyamide Insulation, Black Insulation, Copper Contact, Tin Plated, 105 deg C, 100 Pack

Key Specifications

Barcode (EAN-13)	9328587012348
SKU	ALCBLBK/100
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pre-insulated bootlace terminals Provide precise terminations to multi-stranded cable Reduces possibility of short-circuiting and ensures no strands stray Colour-coded polyamide insulation for easy identification 600V max Bulk packs also available
Standard Pack Size	1
UNSPSC Class	39121400
UOM	PA
Vendor Product	ALCBLBK/100
Collar Inside Diameter	4 mm
Conductor Size	1.5 mm
Contact Material	Copper
Finish	Tin Plated
Insulation Colour	Black
Insulation Material	Polyamide
Number of Conductors	1
Pack Size	100 Pack
Overall Length	14.5 mm
Pin Diameter	2 mm
Pin Length	8 mm
Sleeve Material	Copper
Temperature	105 deg C
Voltage Rating	600 Volt
