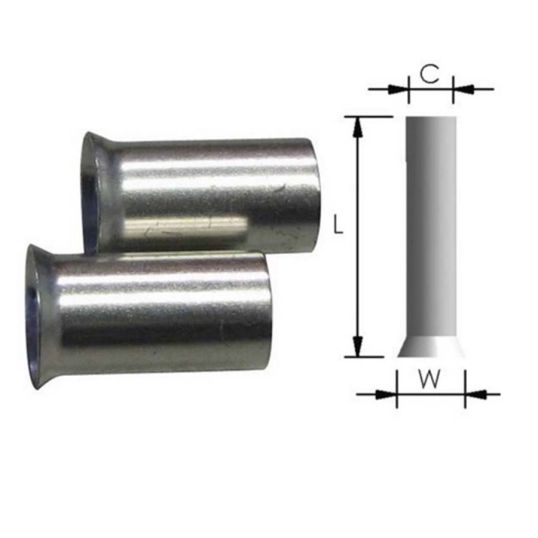

Alco Bootlace Ferrule Non-Insulated Electro Grade Copper 25mmx18mm OAL

Description

Bootlace Ferrule Un-Insulated, 25 mm, 1 Conductors, 18 mm Pin Length, 7.3 mm Pin Diameter, 9.5 mm Collar Inside Diameter, WATKSBLC-35, 18 mm Overall Length, Copper Sleeve, Electro Grade Copper Insulation, Copper Contact, Tin Electroplated, 200 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9328587012560
SKU	ALCBLU25/50
Brand	Alco
Product Type	Bootlace Ferrules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper bootlace terminals Provide precise terminations to multi-stranded cable Reduce the possibility of short-circuiting and ensure no strands stray Electro tinned finish for high conductivity Flared end for easy cable entry
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCBLU25/50
Collar Inside Diameter	9.5 mm
Conductor Size	25 mm
Contact Material	Copper
Crimping Die	WATKSBLC-35
Finish	Tin Electroplated
Insulation Material	Electro Grade Copper
Number of Conductors	1
Overall Length	18 mm
Pack Size	50 Pack
Pin Diameter	7.3 mm
Pin Length	18 mm
Temperature	200 deg C
Sleeve Material	Copper
