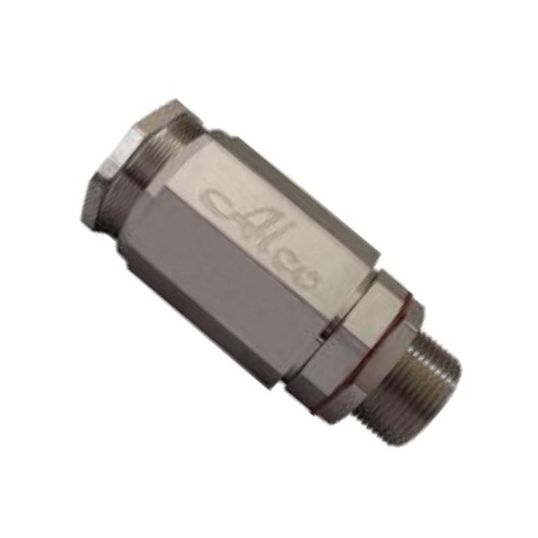

Alco Hazardous Area Cable Gland Armoured Weatherproof 7.8-12.7mm M20 IP66/68

Description

Hazardous Area Cable Gland, Armoured, Weatherproof, M20, 15 mm Thread Length, 7.8 mm Min. Sheath OD, 12.7 mm Max. Sheath OD, 8 mm Max. Bedding OD, 0.7 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, 25 mm Width Across Flats, 27.1 mm Width Across Corners, IP66/68, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish

Key Specifications

Barcode (EAN-13)	9328587007870
SKU	ALCHAW20LR
Brand	Alco
Range Name	Type HAW
Product Type	Cable Glands Armoured Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Indoor or outdoor use Provides seal on cable sheath, clamps SWA
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCHAW20LR
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Bedding OD	8 mm
Max. Sheath OD	12.7 mm
Min. Sheath OD	7.8 mm
Min. Armour Wire	0.7 mm
Max. Armour Wire	0.9 mm
Seal Material	Thermoplastic Elastomer
Thread Size	M20
Width Across Corners	27.1 mm
Width Across Flats	25 mm
Thread Length	15 mm
