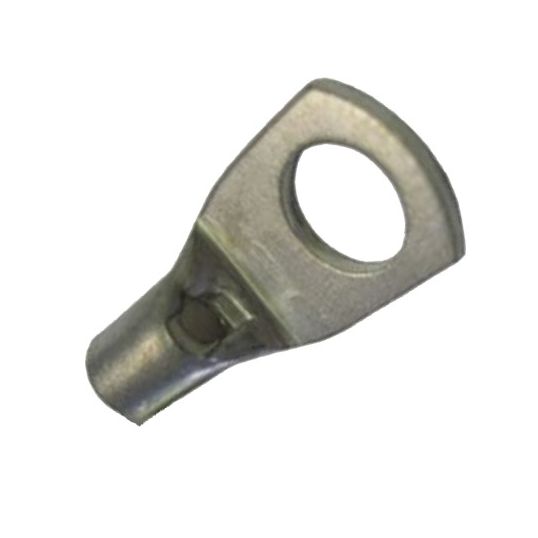

Alco Crimp Lug Standard Non-Insulated with Inspection Hole Copper 4mm M6 Stud 22mm OAL

$Alco\Alco_Crimp_Lug_01.jpg$

Description

Non-Insulated Crimp Lug, 4 mm, M6 Stud, Standard Barrel Type, 9 mm Barrel Length, 22 mm Overall Length, 1 Hole, 7/0.85 Strands, 3.1 mm Inside Diameter, 4.8 mm Outside Diameter, 11 mm Lug Width, 12 mm Lug Length, WATK007/WATMH4NW/WATMEB100CW/WATSTCRS9/WATEK15/50G, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C, With Inspection Hole

Key Specifications

Barcode (EAN-13)	9328587004367
SKU	ALCL4M6/100
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs suitable for stranded to fine - stranded copper cable Electro tinned finish for corrosion resistance 99.9% copper for high conductivity Includes inspection port Conform to Australian Standards Independently tested and complies to Australian Standard AS4325.1 cl7 (10-400 sq-mm )
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCL4M6/100
Barrel Length	9 mm
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	4 mm
Crimping Die	WATK007/WATMH4NW/WATMEB100CW/WATSTCRS9/WATEK15/50G
Finish	Tin Electroplated
Inside Diameter	3.1 mm
Lug Length	12 mm
Lug Width	11 mm
Number of Holes	1 Hole
Number of Strands	7/0.85
Outside Diameter	4.8 mm
Overall Length	22 mm
Please Note	with Inspection Hole
Stud Size	M6
Temperature	-55 to 155 deg C
