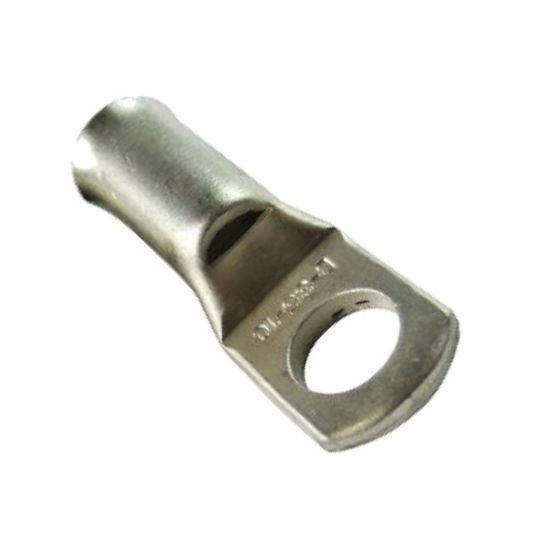

Alco Crimp Lug Bell Mouth Non-Insulated with Inspection Window Copper 120mm M10 Stud

$Alco\Alco_LBM120M10_10.jpg$

Description

Bell Mouth Non Insulated Crimp Lug, 120 mm, M10 Stud, 32 mm Barrel Length, 29 mm Palm, 64 mm Overall Length, 1 Hole, 15.6 mm Inside Diameter, 23.9 mm Outside Diameter, 29 mm Lug Width, 26 mm Lug Length, 4.9 mm Lug Thickness, Copper Body, Copper, Tin Electroplated, -55 to 155 deg C, With Inspection Window

Key Specifications

Barcode (EAN-13)	9328587014502
SKU	ALCLBM120M10/10
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs Electro tinned finish for high conductivity Includes inspection hole Complies with AS 4325.1 (cl7) (>10 sq-mm) Operating temperature: -55 to +155 deg C Suitable for stranded to fine stranded copper cable
Standard Pack Size	10
UNSPSC Class	39121400
UOM	PK
Vendor Product	ALCLBM120M10/10
Barrel Length	32 mm
Body Material	Copper
Conductive Material	Copper
Conductor Size	120 mm
Finish	Tin Electroplated
Inside Diameter	15.6 mm
Lug Length	26 mm
Lug Thickness	4.9 mm
Lug Width	29 mm
Number of Holes	1 Hole
Outside Diameter	23.9 mm
Overall Length	64 mm
Palm Size	29 mm
Please Note	with Inspection Window
Stud Size	M10
Temperature	-55 to 155 deg C
