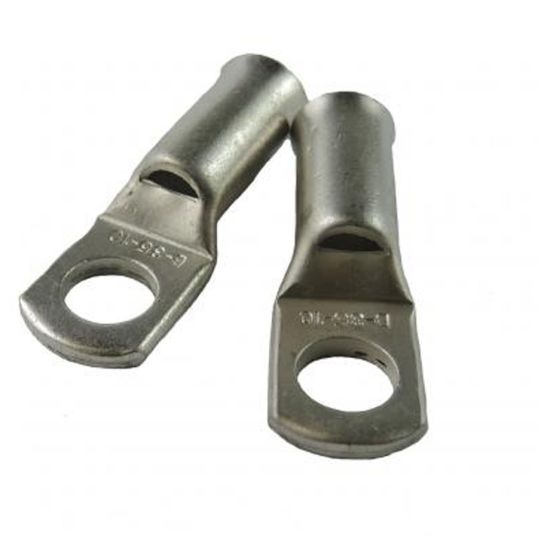

Alco Terminal Lug Bell Mouth Non-insulated with Inspection Hole Copper 150mm M8 Stud 78mm OAL

$Alco\Alco_Terminal_Lug.jpg$

Description

Terminal Lug Bell Mouth Non-insulated Copper, 150 mm Conductor, M8 Stud, 32 mm Barrel Length, Palm Size: 31 mm Width, 78mm Overall Length, Copper Body, Tin Electroplated, -55 to 155 deg C, 16.3mm Inside Diameter, 22.2mm Outside Diameter, 34mm Lug Length

Key Specifications

Barcode (EAN-13)	9328587024693
SKU	ALCLBM150M8/10
Brand	Alco
Product Type	Lugs Bell Mouth

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable Electro tinned finish for high conductivity Includes inspection hole Conform to IS 191 (part V GR.ETP) specifications
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCLBM150M8/10
Barrel Length	32 mm
Body Material	Copper
Conductor Size	150 mm
Finish	Tin Electroplated
Inside Diameter	16.3 mm
Lug Length	34 mm
Outside Diameter	22.2 mm
Overall Length	78 mm
Palm Size	31 mm
Stud Size	M8 Stud
Temperature	-55 to 155 deg C
