Connectwell Rail Terminal Block Screwed Clamp 2 Wire 70mm Grey Polyamide 66

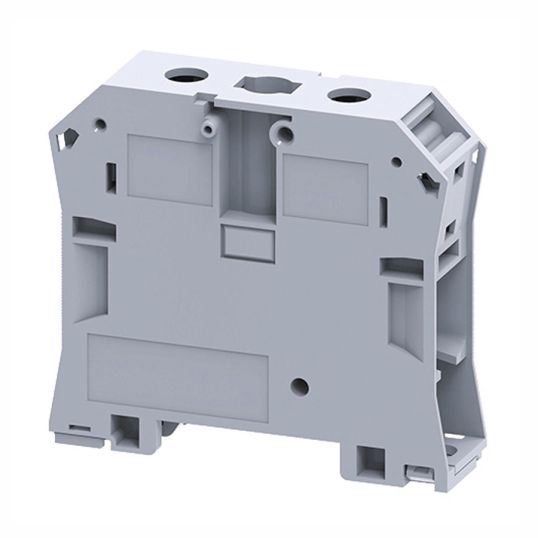

$Connectwell\Connectwell_CTS50-70N.JPG$

Description

CTS50/70N Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. A specially designed flexible foot enable easy mounting and dismounting from the DIN rail with the help of screw driver. These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links/sleeves and screws.

Key Specifications

SKU	ALSCTS50/70N
Brand	Connectwell
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	CTS50/70N
Colour	Grey
Depth	20.5 mm
Current Rating	192 Amp
Insulation Material	Polyamide 66
Height	78.1 mm/71.1 mm
Mounting Method	DIN 32/35/35-15
Number of Conductors	2
Number of Levels	1
Rated Surge Voltage	8 kV
Terminal Type	Screw Clamp
Tightening Torque	3 Nm
Voltage Rating	1600 Volt
Wire Entry Orientation	Side
Width	77.3 mm
Wiring Format	2 Conductor Through
Wire Strip Length	22 mm
