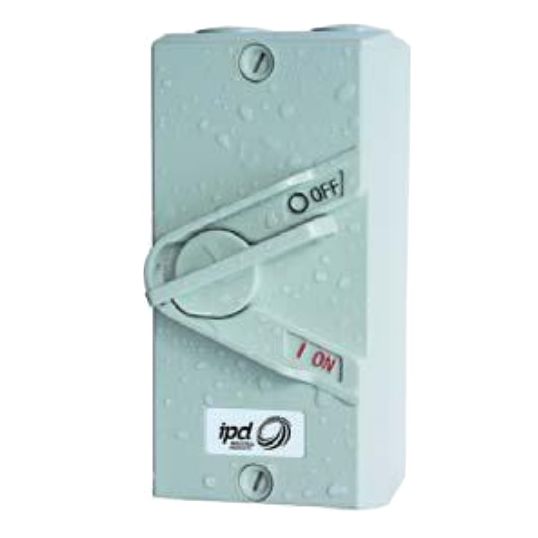

IPD Isolating Switch Surface Mounting Weatherproof 1P 20A 240V Grey IP66

Description

Isolating Switch Surface Mounting Weatherproof, 240 Volt AC, 20 Amp, 1 Pole, Polycarbonate, Grey, IP66, Screws, Surface Mount, 25 mm, 167 mm Height, 82.5 mm Width, 89 mm Depth

Key Specifications

SKU	ALSIPW201
Brand	IPD
Range Name	IPW Series
Product Type	Isolating Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Max cable 25 sq-mm High visibility on/off indication High strength locking screws Made from UV resistant polycarbonate, IP66 Phase connections up to 25 sq-mm cable, E and N 16 sq-mm Pad-lockable handle with front and rear entries Ample cable space for the large cables
Standard Pack Size	20
UNSPSC Class	39122200
UOM	EA
Vendor Product	IPW201-NLA
Colour	Grey
Connection Type	Screws
Current	20 Amp
Depth	89 mm
Height	167 mm
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	1 Pole
Terminal Capacity	25 mm
Voltage	240 Volt
Width	82.5 mm
