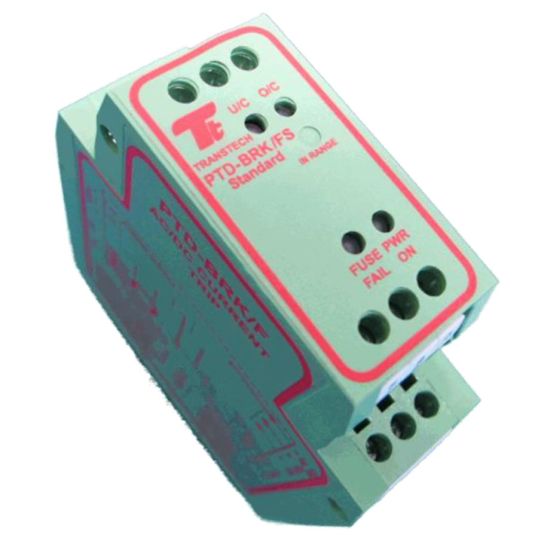

Automated Control Powered Current Sensing Trip Amplifier 22-60V 1 Form C (SPDT)

$Automated-Control\Automated-Control_PTD-BRK-FS-1A.jpg$

Description

Powered Current Sensing Trip Amplifier, 22-60 Volt AC/DC, 2 Amp Continuous, 1 Form C (SPDT) Configuration, 1 Pole, Din Rail Mounting, 0 to 60 deg C, KRILEN, 106 mm Height, 25 mm Width, 79 mm Depth

Key Specifications

SKU	AMCPTD-BRK/FS-1A
Brand	Automated Control

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wide operating voltage range Set point trip status LED’s Trip window factory set with status LED’s Very small footprint area DIN & G rail mounting style Low power consumption
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	PTD-BRK/FS-1A
Contact Configuration	1 Form C (SPDT)
Depth	79 mm
Height	106 mm
Material	KRILEN
Number Of Poles	1 Pole
Mounting Method	Din Rail
Operational Current	2 Amp Continuous
Operational Voltage	22-60 Volt AC/DC
Temperature	0 to 60 deg C
Width	25 mm
