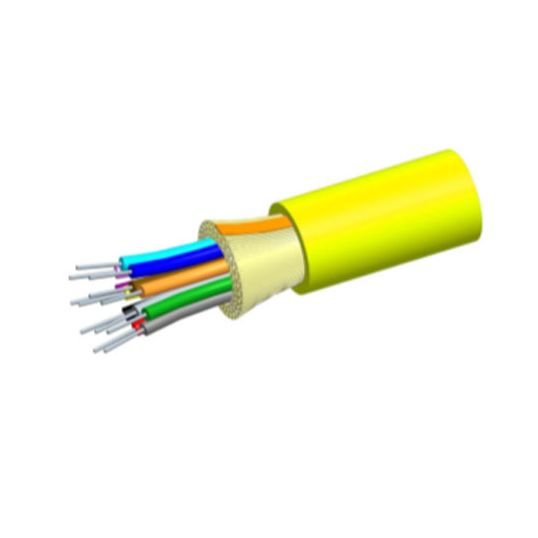

AMP Netconnect TeraSpeed Fibre Optic Cable Indoor OS2 Singlemode 6 Fibre LSZH Riser Distribution Yellow

$AMP_Netconnect\AMP_760004267.jpg$

Description

Indoor Fibre Cable, 6 Fibre, G.652.D and G.657.A1, TeraSPEED, Singlemode, 76 mm Loaded/51 mm Unloaded Bend Radius, 200 N Long Term/667 N Short Term Tensile Strength, 200 N Long Term/667 N Short Term Max. Tensile Load, 2.94 Nm Impact Resistance, Non-Armoured, Yellow Sheath, 40 to 70 deg C, 5.07 mm Outside Diameter

Key Specifications

SKU	AMP760004242
Brand	AMP Netconnect
Range Name	TeraSpeed

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	43223300
UOM	FT
Vendor Product	760004242
Bend Radius	76 mm Loaded/51 mm Unloaded
Construction	Non-Armoured
Fibre Count	6
Fibre Mode	Singlemode
Impact Resistance	2.94 Nm
Fibre Type	G.652.D and G.657.A1 TeraSPEED®
Max. Tensile Load	200 N Long Term/667 N Short Term
Outside Diameter	5.07 mm
Sheath Colour	Yellow
Temperature	40 to 70 deg C
Tensile Strength	200 N Long Term/667 N Short Term
