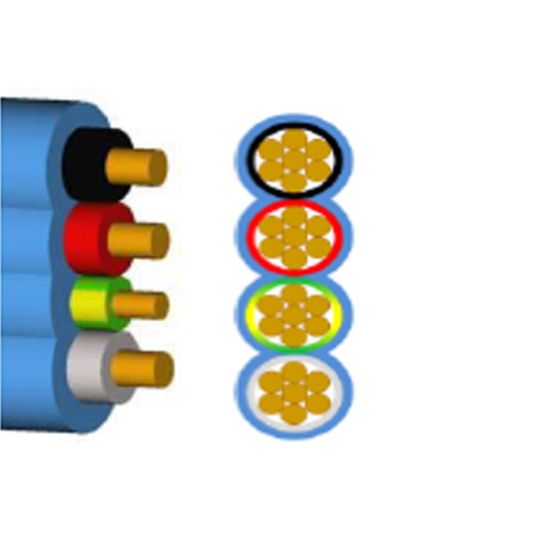

APEC Power Cable Flat 3 Core + Earth 1.5mm 450/750V Copper PVC/PVC Blue 100m

$APEC\APEC_BAC4705.JPG$

Description

Flat Cable, 1.5 mm, Annealed Copper, 3 Core + Earth, 12.7 mm x 4.6 mm Overall Diameter, 1.5 mm Earth Conductor, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Black/Red/White/Green/Yellow Core, V-90 PVC Insulation, 3V-90 PVC Sheath, Blue Sheath, 90 deg C

Key Specifications

Barcode (EAN-13)	932666301641
SKU	APEBAC4705
Brand	APEC
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	BAC4705
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/White/Green/Yellow
Earth Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.6 mm
Number of Cores	3 Core + Earth
Overall Diameter	12.7 mm x 4.6 mm
Sheath Colour	Blue
Sheath Material	3V-90 PVC
Sheath Thickness	0.9 mm
Temperature	90 deg C
