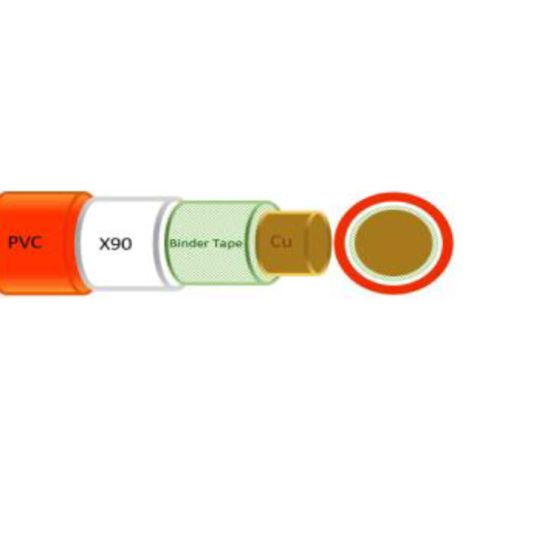

Flexible Cable 1 Core 70mm 0.6/1kV Copper XLPE/5V90 PVC Orange

Description

Flexible Cable, 70 mm, Annealed Copper, 0.6-1 kV, 1 Core, 17.2 mm Overall Diameter, 103 mm During Installation/69 mm After Installation Bend Radius, 1.1 mm Insulation Thickness, 1.4 mm Sheath Thickness, 0.272 Ohm/km Conductor Resistance, 3000 GOhm/m Insulation Resistance, XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 90 deg C, AS/NZS 5000.1 AS/NZS 3808 AS/NZS 3008 AS/NZS 1660 AS/NZS 1574

Key Specifications

Barcode (EAN-13)	932666302072
SKU	APEFXV070WO
Brand	APEC
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	FXV070WO
Bend Radius	103 mm During Installation - 69 mm After Installation
Conductor Resistance	0.272 Ohm/km
Conductor Size	70 mm
Conductor Type	Annealed Copper
Insulation Colour	White
Insulation Material	XLPE
Insulation Thickness	1.1 mm
Insulation Resistance	3000 GOhm/m
Number of Cores	1 Core
Overall Diameter	17.2 mm
Sheath Colour	Orange
Sheath Thickness	1.4 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 5000.1 AS/NZS 3808 AS/NZS 3008 AS/NZS 1660 AS/NZS 1574
Temperature	-25 to 90 deg C
Voltage	0.6-1 kV
