APEC Flexible Cable 1 Core 185mm 0.6/1kV Aluminium X-HF-110/HFS-110-TP Black

Description

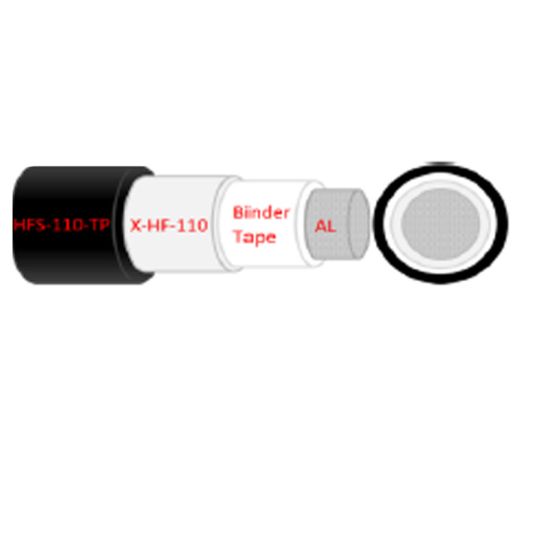

Flexible Cable, 185 mm, Aluminium, 0.6-1 kV, 1 Core, 25.9 mm Overall Diameter, 311 mm During Installation/207 mm After Installation Bend Radius, 1.6 mm Insulation Thickness, 1.8 mm Sheath Thickness, 0.164 Ohm/km Conductor Resistance, 40 GOhm/m Insulation Resistance, X-HF-110 Insulation, White Insulation, HFS-110-TP Sheath, Black Sheath, 110 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

Barcode (EAN-13)	932666301860
SKU	APEFXV185A01HFS110
Brand	APEC
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	FXV185A01HFS110
Bend Radius	311 mm During Installation - 207 mm After Installation
Conductor Resistance	0.164 Ohm/km
Conductor Size	185 mm
Conductor Type	Aluminium
Insulation Colour	White
Insulation Material	X-HF-110
Insulation Thickness	1.6 mm
Insulation Resistance	40 GOhm/m
Number of Cores	1 Core
Overall Diameter	25.9 mm
Sheath Colour	Black
Sheath Thickness	1.8 mm
Sheath Material	HFS-110-TP
Standards	AS/NZS 1125 AS/NZS 3808
Temperature	110 deg C
Voltage	0.6-1 kV
