APEC 16mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 100mtr

Description

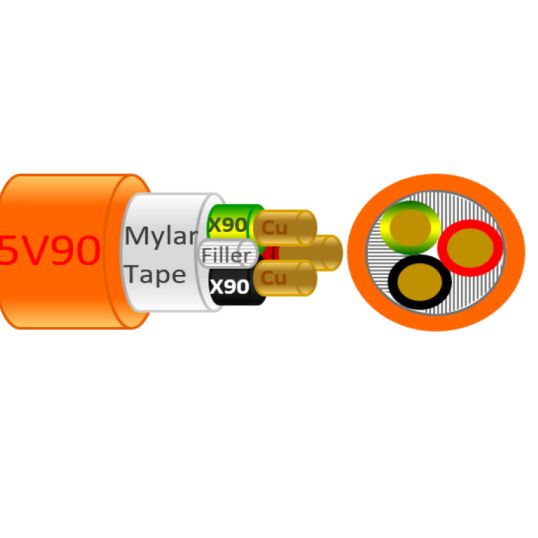

Circular Cable, Unarmoured, 16mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 7/1.7mm Strands, 24.2mm Overall Diameter, 6mm Earth Conductor, 0.7mm + 0.7mm Earth Insulation Thickness, 1.8mm Sheath Thickness, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	932666301262
SKU	APEMX016E02
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MX016E02
Conductor Size	16 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/Yellow
Earth Conductor Size	6 mm
Insulation Material	X-90 XLPE
Insulation Thickness	0.7 mm + 0.7 mm Earth
Number of Cores	2 Core + Earth
Overall Diameter	24.2 mm
Sheath Material	5V-90 PVC
Sheath Colour	Orange
Standards	AS/NZS 5000.1
Sheath Thickness	1.8 mm
Stranding	7/1.7 mm
Temperature	90 deg C
Voltage	0.6-1 kV
