APEC 95 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/5V-90 PVC 100mtr

$APEC\APEC_MXS-E03.JPG$

Description

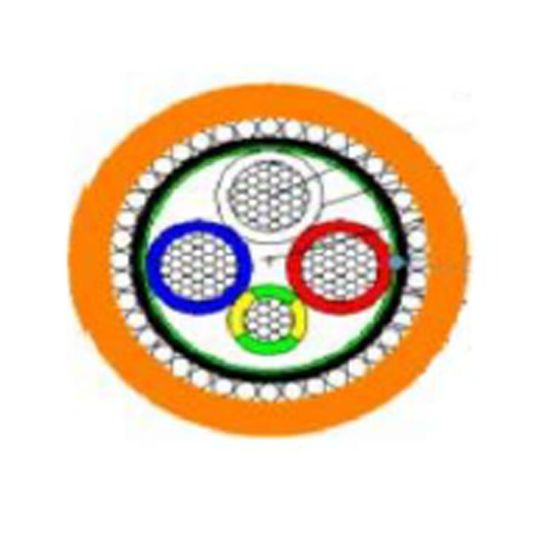

Circular Cable, Armoured, 95 mm, Annealed Copper, 0.6-1 kV, 3 Core + Earth, 46.2 mm Overall Diameter, 40.2 mm Diameter Over Armour, 25 mm Earth Conductor, 100 mtr Length, 1.1 mm Insulation Thickness, 2.3 mm Sheath Thickness, Steel Wire Armour, Red/Blue/White/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	932666300060
SKU	APEMXS095E03
Brand	APEC
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MXS095E03
Armour Material	Steel Wire
Conductor Size	95 mm
Conductor Type	Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Diameter Over Armour	40.2 mm
Earth Conductor Size	25 mm
Insulation Material	X-90 XLPE
Insulation Thickness	1.1 mm
Number of Cores	3 Core + Earth
Overall Diameter	46.2 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	2.3 mm
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
