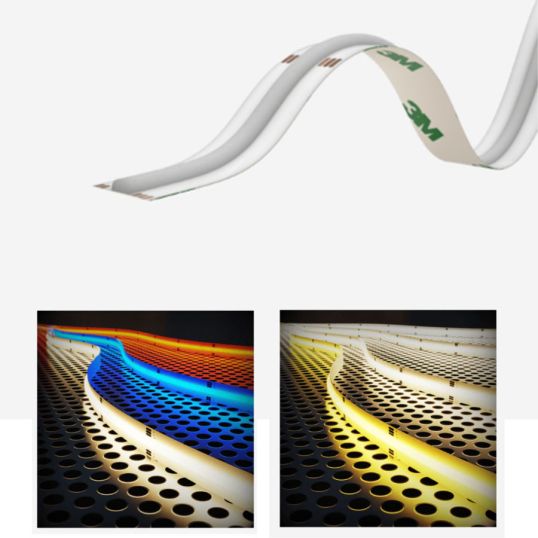

Aqualux Mono ProCOB LED Strip 24VDC 20W/m 2700K 1420lm/m 95CRI+ IP20 5/10m
Loading...
Description
AQS-173 is the latest technology in Mono COB Strip lighting. Where maximum light and quality is required. 12 mm PCB for improved stability. Reduce cut intervals for precise cutting. Ultra high CRI 95+. Use for internal illumination, the COB LED Strip minimises the issue of dark LED dots for a clean continuous linear light source.
Key Specifications
| SKU |
AQLAQS-173-27A20
|
|---|---|
| Brand |
Aqualux
|
| Range Name |
Pro Cob
|
| Product Type |
LED Strip Lights
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39112100 |
| UOM | MTR |
| Vendor Product | AQS-173-27A20 |
| Average Lamp Life | 50000 hrs |
| Beam Angle | 180 deg |
| Colour Temperature | 2700K |
| CRI | 95+ |
| Height | 2 mm |
| IP Rating | IP20 |
| Input Voltage | 24 Volt DC |
| Lumens | 1420 lm/mtr |
| Number of LEDs | 576/mtr |
| Mounting Method | Aluminium Extrusion |
| Temperature | -20 to 40 deg C |
| Width | 12 mm |
| Wattage | 20 Watt/m |
