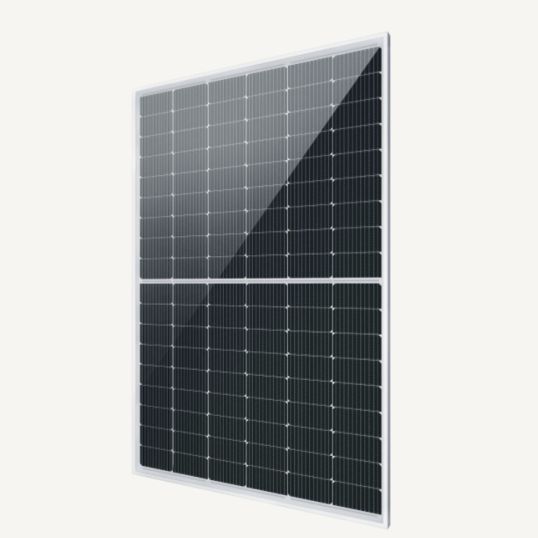

Astronergy Astro 5s Monofacial Solar Panel 395W P-Type Mono-Crystalline 182 Cells Silver Frame 30mm

$Astronergy\Astronergy_CHSM54-HC-XXXSF.jpg$

Description

Solar Panel, P-Type Mono-Crystalline, 182 Cell, 395 Watt, 30.92 Volt, 12.77 Amp, 36.8 Volt Open Circuit, 13.52 Amp Short Circuit, 25 Amp Max. Fuse Current, 1500 Volt DC Max. System Voltage, 20.2% Efficiency, PV-HCB40/PV-KST4-EVO2/XY-UR, PV-KBT4-EVO2/XY-UR (Optional) Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, IP68/3 with Bypass Diodes Junction Box, Silver Anodized Aluminum Frame Construction, 3.2 mm Thick Front Glass, -0.35%/deg C Temperature Coefficient, 1722 mm Length, 1134 mm Width, 30 mm Height, 21.6 kg (Tolerance +/- 1 kg), ISO 9001:2015, ISO 14001:2015, ISO 45001

Key Specifications

SKU	ASTCHSM54-HC-395SF
Brand	Astronergy
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	CHSM54-HC-395SF
Cell Type	Monocrystalline
Connector Type	PV-HCB40/PV-KST4-EVO2/XY-UR; PV-KBT4-EVO2/XY-UR (Optional)
Certifications	ISO 9001 2015 ISO 14001 2015 ISO 45001
Efficiency	20.20%
Frame Construction	Silver Anodized Aluminum
Front Glass	3.2 mm
Height	30 mm
Item Weight	21.6 kg (Tolerance +/- 1 kg)
Junction Box	IP68/3 with Bypass Diodes
Max. Current	12.77 Amp
Max. Fuse Current	25 Amp
Max. System Voltage	1500 Volt DC
Max. Voltage	30.92 Volt
Number Of Cells	182
Open Circuit Voltage	36.8 Volt
Output Cables	4 mm (IEC)/12 AWG (UL)
Short Circuit Current	13.52 Amp
Temperature Coefficient	-0.35%/deg C
Wattage	395 Watt
Width	1134 mm
